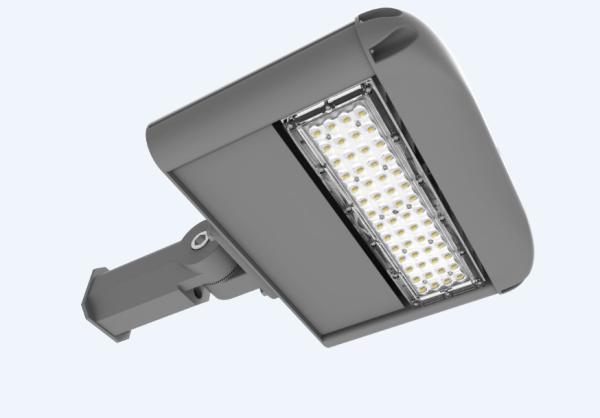

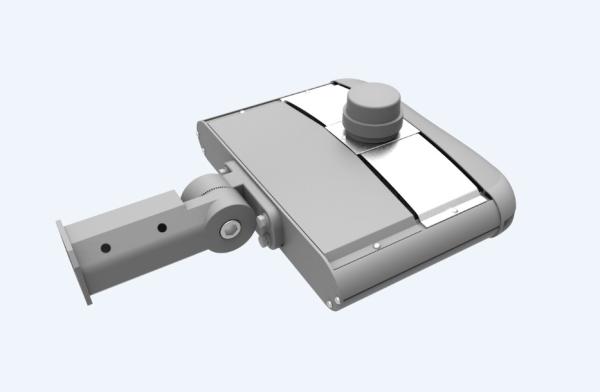

IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
Specifications
Brand Name :
E-lite
Model Number :
Modular Area Lighting
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Housing color :
Black/Brown/Gray
Certificate :
ETL DLC CB CE ROHS
Working Life-span: :
50000hrs
Efficacy :
180 lm/W
Beam Angle :
30×120° 40×100° 60×100° 60×120° 90° 110° 150° 70×135° 75×150° 80×150°
Operating Temperature :
-30 to 60°C (-22 to 140°F)
Description

IP66 200watt LED Shoebox Light for Parking Area Lighting with Meanwell Power​

Installation Caution :

1. Please turn off the power before installation and ensure that the installation site can support the weight of the fixture.
2. In order to prevent the lamp off, make sure the installation is correct.
3. Do not use in a corrosive gas.
4. Do not cover any material in the body.
5. For safety, please tangible take a good ground.
6. Decomposition of the product, modification, or improper construction .

Technical Features:


• Input Voltage: AC100-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.90
• Color Index: Ra>70
• IP Rating: IP66
• Life Span: 50,000 hours

Wattage 100W 150W 200W 300W
Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver Sosen
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 180lm/W
Luminous Flux 18,000 lm 27,000 lm 36,000 lm 54,000 lm
CRI ≥70
Lumen Maintenance L70>150,000 Hrs ( Tm-21 Calculation )
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 30×120° 40×100° 60×100° 60×120°
90° 110° 150°
70×135° 75×150° 80×150°
IP Rating IP66
Operating Temperature -30 to 60°C (-22 to 140°F)
Dimensions 597x358x82mm 711x362x85mm 805x362x85mm 966x365x224mm
Net Weight 6.5 kg 7.5 kg 8.6 kg 14.8 kg
Certification ETL DLC CB GS TUV CE ROHS SAA
Warranty 5 years
Material Aluminum Alloy

FAQ:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 2 pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

IP66 200 Watt LED Shoebox Light For Parking Area Lighting With Meanwell Power
