Specifications
Brand Name :
E-lite
Model Number :
Modular Area Lighting
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Lighting Distribution :
Type II S Type II M Type III S Type IV Type V
Electrical class :
CLASS TWO
Power Factor :
0.95
LED Style :
SMD3030
Beam Angle :
Asymmetric distribution
Operating Temperature :
-30 to 60°C (-22 to 140°F)
Description

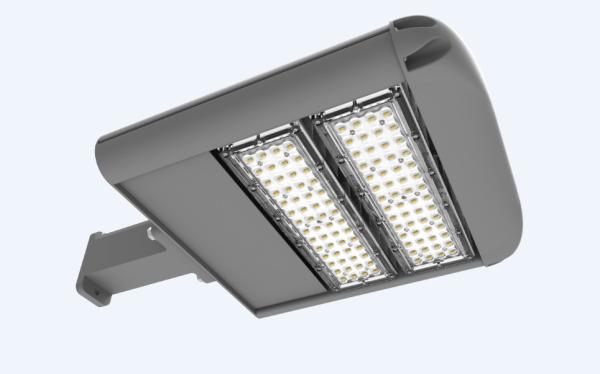

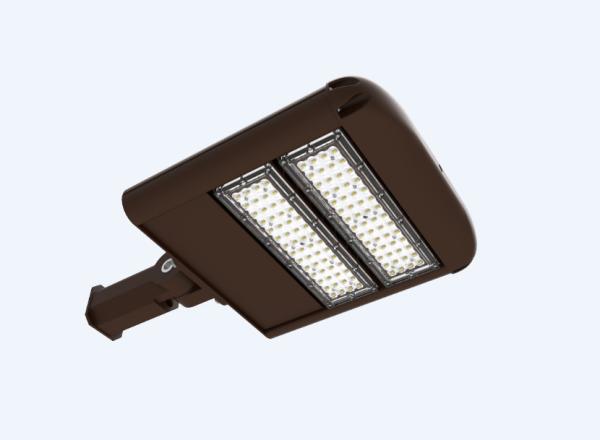

2020 Hot Sale LED Area Shoebox Lighting for Us Market ETL DLC CB led street light housing​


Installation Caution :

1. Please turn off the power before installation and ensure that the installation site can support the weight of the fixture.
2. In order to prevent the lamp off, make sure the installation is correct.
3. Do not use in a corrosive gas.
4. Do not cover any material in the body.
5. For safety, please tangible take a good ground.
6. Decomposition of the product, modification, or improper construction .

Technical Features:
• Input Voltage: AC100-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.90
• Color Index: Ra>83
• IP Rating: IP66
• Life Span: 50,000 hours

Wattage100W150W200W300W
Input VoltageAC 100~277 V/ AC 200~480 V
LED DriverSosen
LED ChipLumileds
Power Factor≥0.95
Efficacy180lm/W
Luminous Flux18,000 lm27,000 lm36,000 lm54,000 lm
CRI≥70
Lumen MaintenanceL70>150,000 Hrs ( Tm-21 Calculation )
Colour Temperature4500~5500K (2500~5500K Optional)
Beam Angle30×120° 40×100° 60×100° 60×120°
90° 110° 150°
70×135° 75×150° 80×150°
IP RatingIP66
Operating Temperature-30 to 60°C (-22 to 140°F)
Dimensions597x358x82mm711x362x85mm805x362x85mm966x365x224mm
Net Weight6.5 kg7.5 kg8.6 kg14.8 kg
CertificationETL DLC CB GS TUV CE ROHS SAA
Warranty5 years
MaterialAluminum Alloy


Services:
1. After sale service:

Takes the principle of "Customer First, Service Superior" to satisfy our customers in after-sale services. According to different types of our products,we promise to offer 3 years warranty period (except special agreement), in which we provide either free or paid guarantee repairs, detailed items as followed.
If our products have some existence quality problems within 3 months since the date of purchasing, customer can change new product or free components to replace.
2. Warranty period after the 4th month of purchasing date.

Within 24 months, if the LED light power occurs some abnormal issues to make our products can not work normally, we will offer free new power to renew and repair. Changing method can be consulted and determined by particular cases.
Within 36 months, if the LED light occur serious fades or can not work, freely offered newly light source to renew and repair by us. Changing method can be consulted and determined by particular cases
Note: LED depreciation ratio and other parameters related evaluation should consider the working conditions of LED light and working time calculated within 12 hours per day under a usual working environment.
Our trade terms:
1. Payment term: 30% deposit by T/T or Westernunion; 70% before delivery.
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen, China.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.

LED Area Shoebox Lighting for Us Market ETL DLC CB led street light housing
