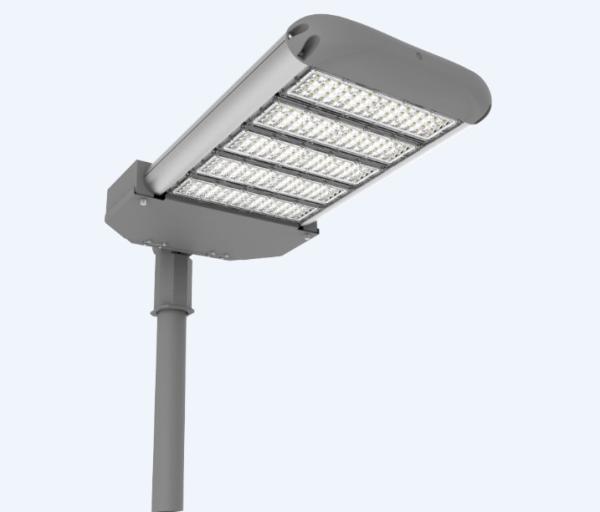

Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights
Specifications
Brand Name :
E-lite
Model Number :
EDGE Street Light
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Power :
Inventronics
Color Temperature :
3000, 4000, 5000, 5700K
Optics :
Optical component
Cable :
Silicone rubber cable
HS Code :
9405409000
Work temp :
-35ºC~+50ºC
Description

Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights

Outdoor LED street light function:


LED chip: High efficiency and long service life L70>1500,000 hours and Brand lumileds 5050.

Power: Meanwell-certified drives for LED street lights, IP66 waterproo and dust-proof. Power efficiency ≥ 95.

Color Temperature: Widely range of 3000, 4000, 5000, 5700, and 6500 Kelvin to help improve the appearance of the building.

Optics: Optical component seals with IP66 protection. The LED optical system fixture maximizes light to the target area for improved light uniformity.

Enclosure: Fishbone efficient radiator with elegant appearance. The die-cast aluminum housing is electrostatically sprayed, sprayed with a polyester powder coating, treated with an anti-corrosive primer, and cured in a 180oC oven.

Cable: Silicone rubber cable for power input. Secure it in the cable gland with screws.

Warranty: 5 year warranty or 10 years warranty. Do not attempt to disassemble the casing as this will break the seal and void all warranties.

Quality Control: Strict product testing includes high and low temperature testing, waterproof testing, shock testing, aging testing, tensile testing, salt spray testing, etc. to ensure long-term performance.

Specifications
Model EO-ST-50 EO-ST-100 EO-ST-150 EO-ST-200 EO-ST-240
LED Brand LUXEON® 3030 2D
Driver Brand Inventronics Driver
Norminal Wattage 50W 100W 150W 200W 240W
LED Quantity 56 pcs 112pcs 168pcs 224pcs 280pcs
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Luminous Efficiency >130lm/w
Lamp Rated Lumen output 7000lm 14000lm 21000lm 28000lm 33600lm
Color Rendering Index Ra>70
Color Temperature 3000K,4000K,5000K,5700K
Photometric Type Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature 25°
Storage Temperatures -40°C~50°C
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 100000 hours -L70, @25 ºC (77 ºF)
Wind Index Force 12
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10with test report
Certification CE,ROHS,ENEC,GS,CB,UL,cUL,DLC,LM-79,LM-80
Optional Function 1-10V
Photocell Control
Warranty 5 years
Packing Details
Fixture Dimension 592x386 x83 678x380x83 774x380x83 868x380x83 960x380x83
Fixture Weight 5.9 kg 7.0kg 8.0kg 9.1kg 10.3kg

Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights

Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights

Outdoor Project Lamps 50W 300W Aluminum IP66 Modular LED Street Lights

Outdoor LED street light 24-hour aging test:


Before shipment, all LED street lamps will be tested for aging more than 24 hours. The inspection department will test 100% of the products, including lighting test, power test, high voltage test, waterproof test, grounding test, etc. The defect rate is controlled. Less than 0.1%. Quality is guaranteed, you can rest assured.

FAQ:

1. Q: Are you a factory or a trading company?

A: We are a manufacturer with a 3KW plasma cutting machine, 3000W and 2000W laser cutting machines, 350T and 1000T stretcher machines to make sure our producing capability.Welcome OEM and ODM for you.

2. Can we have a sample order?

A: Of course! Any sample order is welcome for testing and checking.

3. What is the warranty for the products?

A: Battery:3 years. Controller/LED:5 years. Pole/solar panels:15-20 years

4. How to ship the goods?

A: By sea usually. If urgent requirement, air-shipping is available(except:Batteries)

5. How to deal with the fault?

A: If the problem caused by manufacturing quality, we will change and replace it in free.
