Specifications
Brand Name :
E-lite
Model Number :
Grapheneism™ 140LPM High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Luminous Flux :
140LPW
LED Source :
CREE
Trade Mark :
E-lite
LED Driver :
Meanwell or Sosen
Color Temperature :
3000K,4000K,5000K,6500K
Housing Color :
Black
Description

ETL DLC CB UFO LED High Bay Light for Indoor Industrial Factory Warehouse Lighting​

Features of UFO LED High bay Light:


1.Unique designed UFO shape , lighter and smaller
2.Luminous efficiency: 150-180LM/Watt
3.Meanwell or Sosen driver are available
4.Wide aluminum plate design, heat dissipation fast and evenly
5.Ideal mounting height: 8-15 m
6.Beam Angle for choosing : 60°, 90°, 120°
7.Installation: Bracket, Rack mounting & Hook hanging
8.Working temperature: -40°C ~ + 70°C
9.IP65 protection level
10.Certified product : UL, DLC, CE, ROSH and SGS certification,5 years warranty

Warranty of LED Industrial Light

15 Days Warranty

If you are not satisfied when you receive your item, please return it within 15 days for refund. Please contact me before you return it.For non-defect Item buyer require to pay for the two way shipping freight.

60 Days Warranty

If item is defective within 60 days, We will send you a replacement without extra charge, or offer refund .Buyers require to send back the item and are responsible for return shipping cost .

5-year Warranty

If item is defective within3 years, you can still send it back to us. We will send you a new one after receiving the defective item. But you need to pay for whole shipping freight.

200W LED Industrial Light Main Technical Parameters
Item No.: HLGP-200
Input Voltage: AC 100~277V/347V/480V
Freqency Range: 50Hz~60Hz
Led Chip: Lumileds
Power Factor: >0.96
Power Efficiency: >90%
LED Power 200W
LED QTY: 336pcs
LED Working Voltage: DC 42~48V
System Consumption: 205W
LED Luminous Flux Warm White 27200LM
Pure White 28000LM
Cool White 28000LM
Viewing Angle: 120/90/60egree
Center Illuminance Height 10M 305LUX
Height 20M 81LUX
Height 30M 43LUX
Illuminance Area Height 10M Dia.1178CM points visible
Height 20M Dia.2356CM points visible
Height 30M Dia.3535CM points visible
Illuminance Uniformity: >0.6
Color Temperature Warm White 3000K~3500K
Pure White 5300K~5700K
Cool White 6000K~6500K
Color Rendering Index Ra>80
Light Distribution: LED points visible
Light Design: LED+
LED Junction Temperature: ≤115
Working Temperature: -30~65
IP Grade: IP65
Working Life-span: 50000 H
Power Line: 1.0 mthree line
Connect Wire Brown L
Blue N
Yellow / Green G
The color of the lamp shell Black and silver is available
Certificate CE /Rohs/SAA/
UL
Net Weight: 5.3KG

Download
2019 E-Lite Grapheneism UFO High Bay (140LPW, 100W...

Wattage

100W 150W

200W

240W

Input Voltage

AC 100~277 V/ AC 200~480 V

LED Driver

E-Lite / Sosen

LED Chip

Lumileds / CREE

Power Factor

≥0.95

Efficacy

140 lm/W

Luminous Flux

14,000lm 21000lm

28,000 lm

33,600lm

CRI

≥70

Lumen Maintenance

L70>120,000 Hrs

Colour Temperature

4500~5500K (2500~5500K Optional)

Beam Angle

90° Ribbed Lens
120° Ribbed Lens
120° Clear Flat Lens
120° Diffused Dome Lens
120° Clear Dome Lens
90° Reflector
100° Reflector

IP Rating

IP65 & IP69K

Operating Temperature

-30 to 45°C (-22 to 113°F)

Dimensions

325x325x183mm Max

Net Weight

2.9kg 3,3kg

5.3 kg

5.6kg

Certification

ETL DLC CB GS TUV CE ROHS SAA

Warranty

5 years

Material

Graphene Composite Hear Sink

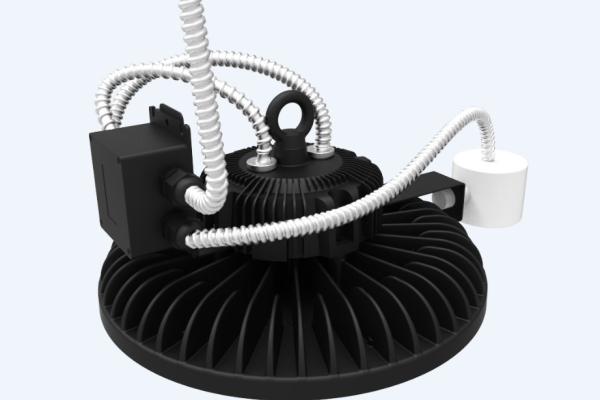

Easy Installation with US Hook:

When the customer installs the light, the luminaire is usually hung on the round hook. If the hook on the luminaire is also round, then the customer must purchase the joint to complete the installation; but if you choose High Bay Lights, then you don't have to be so troublesome at all. High bay lights are specially customised with US hooks for easy installation. You only need to rotate the hook to the lamp, then connect the hook to the hanger and tighten the screw. There is no need to purchase additional accessories to easily complete the installation of the fixture.


ETL DLC CB UFO LED High Bay Light For Indoor Industrial Factory Warehouse Lighting

Q: What's the best price for my order?
A: Price is based on your order quantity , please contact us to get the best price.
Q: Can I get a sample to check the quality?
A: samples are welcome and it can be delivered to you witin 7 days once you confirmed.
Q: Do you have other similar led light for me to choose?
A: Yes, contact us, we will send more information.
Q: What is the warranty?
A: Most of our products are 5 years warranty.
