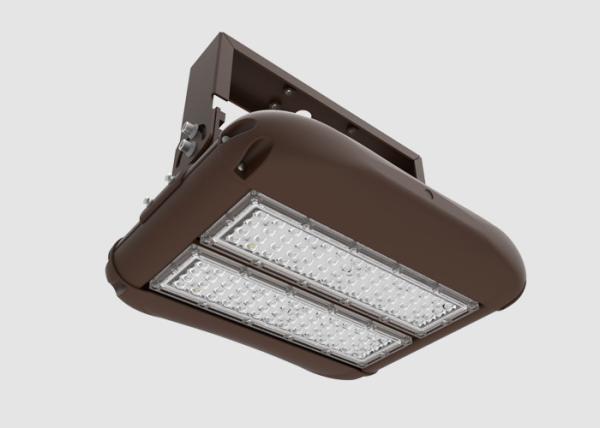

165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings
165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings
165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings
165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings
Specifications
Brand Name :
E-lite
Model Number :
New Edge Modular High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Watt :
200W
Lumens :
33,000 lm
LED Chip :
Lumileds
Power Factor :
≥0.95
Efficacy :
165 lm/W
CRI :
≥70
Lumen Maintenance :
L70>150,000 Hrs
Description

165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings

FEATURE:

·System Light Efficacy 160~165 LPW
·Ultra Bright, Up to 96,000Lm
·Flexible, Modular Design
·Multiple Choice of Optical Lenses
·Easy Installation & Maintenance
·Five Years Warranty
·IP66

Wattage 120W 200W 300W 400W 600W
Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver Sosen
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 160-165lm/W
Luminous Flux 19,200 l m 33,000 lm 49,500 lm 66,000 lm 96,000 lm
CRI ≥70
Lumen Maintenance L70>150,000 Hrs ( Tm-21 Calculation )
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 40×1100° 60×100° 90° 110° 150°
IP Rating IP66
Operating Temperature -30 to 60°C (-22 to 140°F)
Dimensions 221x366x145mm 308x366x145mm 402x366x145mm 496x366x145mm 590x366x145mm
Net Weight 5.4 kg 6.5 kg 7.5 kg 7.9 kg 12.5 kg
Certification ETL DLC CB GS TUV CE ROHS SAA
Warranty 5 years
Material Aluminum Alloy

This modular LED high bay lights adopt high performance Lumileds SMD5050.

It provides wide power options from 120W up to 600W.

The modular aluminum heat sink provides an advanced heat management.

Unified protective housing with fine powder coating, to protect the lamp against dust and water in harsh outdoor environments.

It adopts professional PC optical lens with various distribution options to suit in all types of illumination purposes.

165LPW High Bay Workshop Lights / 200W High Temperature 60°C Workshop Fittings
