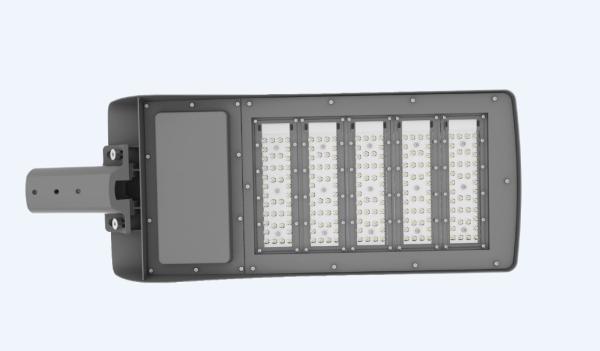

240W LED Cobra Head Street Light Die Casted Aluminum Of Housing ETL
240W LED Cobra Head Street Light Die Casted Aluminum Of Housing ETL
240W LED Cobra Head Street Light Die Casted Aluminum Of Housing ETL
240W LED Cobra Head Street Light Die Casted Aluminum Of Housing ETL
Specifications
Brand Name :
E-lite
Model Number :
Oasis Street Light
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Material :
Housing made of aluminium (die casted housing)
Pole :
60 mm pole connector
Certified :
Certified for IK10
Protection :
Class I or II
Surge protection :
10 kV
Warranty :
5 years warranty
Description

240W LED Cobra Head Street Light Die casted aluminum of housing ETL

ELECTRICAL CHARACTERISTICS:

  • 220 – 240 V (50 – 60 Hz) input

  • 110 – 277 V input voltage range upon request

  • Power factor at full load more than 0,95

  • Total harmonic distortion (THD) ≤ 15%

  • Up to 99 % driver efficiency at full load with the Xitanium LED driver

  • Dimming options: Lumistep, Line switch, DALI, 1 – 10 V and Dynadimmer
    (autonomous dimming) upon request

  • 10 kV surge protection upon request

  • Protection class I or II

MECHANICAL CHARACTERISTICS

  • Housing made of aluminium (die casted housing)

  • Top pole or side entry. As a standard equipped with a 60 mm pole connector, 76 mm also available

  • Possibility to change the inclination from -15° up to +15° in increments of 5°

  • A cable upon request

  • Anodized finish and dust painted with epoxy paint & thermal treatment to ensure long-term environmental protection against all weather conditions. RAL 9006 or other upon request

  • Tempered cover glass

  • All screws are made of stainless steel

  • All gaskets are made of ozone and UV resistant silicone for IP66 protection

  • Certified for IK10

Technical Details:

Brand

E-Lite

Part Number

EL-OSST-240ST

Item Weight

19IBS

Product Dimensions

32.5 x 12.3 x 4 inches

Style

Modern

Color

Arm Mount

Shape

square

Material

heavy-duty aluminum

Number of Lights

3

Included Components

Dusk to dawn photocell included

Voltage

AC100-277V

Fixture Features

Instant On, Dusk to Dawn Photocell Included, IP66 waterproof for wet location, Diecasting aluminum with excellent heat dissipation, Arm mounting for round and square pole

Shade Material

Aluminum

Light Direction

Downlight

Power Source

corded-electric

Switch Installation Type

Arm Mounting

Batteries Included?

No

Batteries Required?

No

Type of Bulb

LED

Luminous Flux

32,400 lm

Wattage

240 watts

Color Temperature

5000 Kelvin

Introducing the E-lite Street Light

E-lite Street light provides high performance, long lifespan and energy savings for illuminating large commercial areas. It is the best choice for replacing existing HID metal halide and high pressure sodium fixture. This led pole light resists wetness, which focus on bad weather, salt mist resistant design. These led area lights have created a new standard for led parking lot lighting and area street lighting.

Features:

D2D- Dusk to dawn photocell sensor included for automatically at dusk and off when the dawn comes.

Heavy-duty aluminum structure for high conductivity and stable performance.

IP66 waterproof with bad weather resistant design, ensure 50,000hrs lifespan.

Easy and fast installation, Contractor-friendly design.

Outstanding thermal solution suit for usage in commercial and industrial grade application.

Save energy and money. Energy-efficient LED technology lowers energy usage. Emits over 18600lm for this led street light.

Instant-On. No flicker. Environment protection without UV or IR radiation.

Widely Application:

Parking lots, Square, Garden Park, Ball Park, Car dealership, Pasture, Farm, Playground, Tennis court.

Roadway, Street, Gas Station Road, Security Area, Urban Road.
