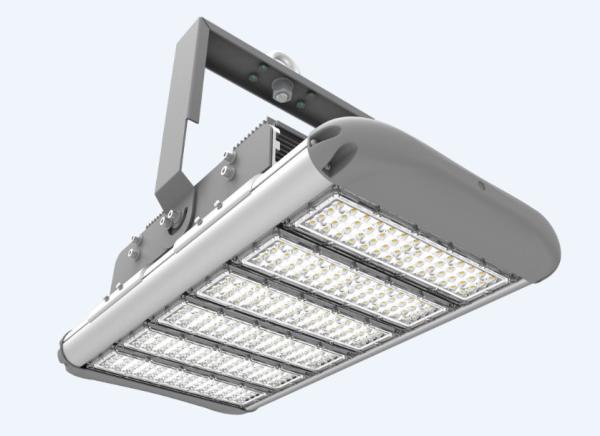

300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment
300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment
300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment
300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment
Specifications
Brand Name :
E-lite
Model Number :
Edge™ 80°C High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Lumens :
54000lm
Dimmable :
0/1~10V
Driver Efficiency :
≥95%
Warranty :
5-7 years warranty
Efficiacy :
180lm/W
Power :
300W
Description

300W High Temperature LED Lights / Hot Mill LED Lights 54,000lm Work Environment

Features:

1. Innovative design with excellent heat dissipation performance
2. Heat-sinking technology ensures long lifespan and low light decline
3. IP66 protection for wet locations
4. Imported tempered optical of lens, non-yellowing and non-cracking for long term application
5. Heavy Duty Anodized Die-cast aluminum housing and corrosion resistant coating
6. Valid over the entire temperature range from -30°C to +80°C(-22 ºF to 176 ºF)

COMPLIANCE & APPROVALS:

  • American market: ETL, DLC Premium
  • European market: TUV, GS, CB, CE, RoHS, WEEE
  • Australian market: SAA
  • LM-79 Reports / LM-80 Reports / TM-21 Data / IES

​Application:

  • Steel plant

  • Aluminum smeltery

  • High-temperature, dust,

  • corrosive gas environment

Catalog Download:

2019 E-Lite EDGE High Bay + Flood(80D 180LPW).pdf

Product Specification:

Model High Temperature High Bay
Electric Power Consumption 300W
Input Voltage

AC120-277V /

347-480V
Input Frequency 50/60Hz
Power Factor > 0.95
Dimmable 0/1~10V
Driver Efficiency ≥90%
Optical Luminous Flux
(Lumen Output)		 54,000Lm
Luminous Efficacy
(Lumens per Watt)		 180Lm/W
Beam angle Total 13 Optics
Correlated Color Temperature (CCT) 4000K/5000K/5700K
Color Rendering Index (CRI) Ra≥70
Environmental Ambient Operating Temperature

-30°C ～+80°C

(-22°F to 176°F)
Ambient Operating Humidity 10%~90% RH
Optimal Operating Temperature 25°C (77°F)
Mechanical Housing Material Aluminum
Lens Material PC
Mounting Options
Pendant,Hanging Ring
Net weight
14.8KG
IP Rating IP66
Dimensions (L×W×H) 684x365x224mm

Warranty

Certificate

 5-7 years warranty
ETL DLC CB TUV CE ROHS SAA

Why H.T 80°C?

Housing Material: 6063 Aluminum Alloy

Driver Housing: Heavy Aluminum(Powder Coated)

Bakelite: H.T Resistant Bakelite Board(Phenolic)

(Isolating the thermal conductivity of the power to the fixture)

Anbotek Testing: 72H, Nine Point of Location..

Chamber Tem: 80.37°C

Power Supply: 83.51°C( Average)

Power Point Tc: 83.33°C

Light Module: 96.77°C( Average)

300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment

300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment

TYPICAL APPLICATIONS

  • Heavy Industry

  • High Temp Applications

  • Indoor Sports Ground

  • Car Dealership

  • General Industrial Applications

  • Warehouse

300W High Temperature LED Lights / Hot Mill LED Lights 54000lm Work Environment ​
