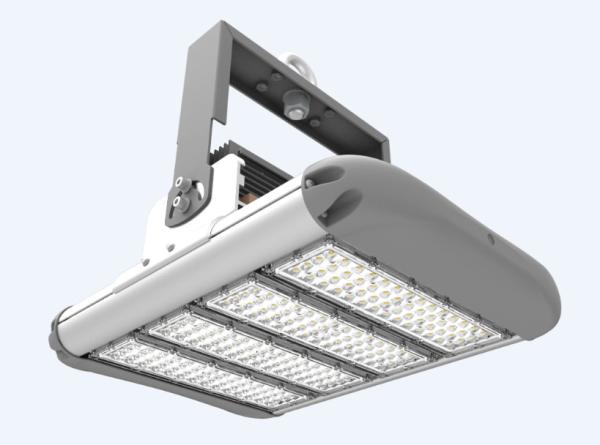

200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB
200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB
200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB
200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB
Specifications
Brand Name :
E-lite
Model Number :
Edge™ 80°C High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Mounting Option :
Hanging Ring, Pendant, Surface Mount
temperature range :
-30°C to +80°C
Application :
Steel plant, Aluminum smeltery High-temperature, dust, corrosive gas environment
Warranty :
5-7 years warranty
Efficiacy :
180lm/W
Power :
200W
Description

200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB​

LED LIGHTING FOR HOT MILL ENVIRONMENTS

80°C (176°F) TEMP RATING – LED Fixture up to 180LM/W designed to withstand up to 80-degree temperatures

Intergral drivers - Special H.T poweder coated to heat sink, don't to remote the drivers.

HOT ENVIRONMENTS – Proven to last in Hot Mills, Furnace Rooms, Dryer Hoods, Cooling Beds and more.

OPERATING TEMP -30°C TO +80°C

Steel and other manufacturing hot mills often experience drastic temperature fluctuations and require an industrial lighting solution with extremely high operating temperatures.

With industry-leading heat management technology, our robust fixtures are proven to withstand the hot ambient environments currently found in several of the world’s largest steel manufacturing plants and hot mills.

Catalog Download:

2019 E-Lite EDGE High Bay + Flood(80D 180LPW).pdf

Product Specification:

Model High Temperature High Bay
Electric Power Consumption 200W
Input Voltage

AC120-277V /

347-480V
Input Frequency 50/60Hz
Power Factor > 0.95
Dimmable 0/1~10V
Driver Efficiency ≥90%
Optical Luminous Flux
(Lumen Output)		 36,000Lm
Luminous Efficacy
(Lumens per Watt)		 180Lm/W
Beam angle Total 13 Optics
Correlated Color Temperature (CCT) 4000K/5000K/5700K
Color Rendering Index (CRI) Ra≥70
Environmental Ambient Operating Temperature

-30°C ～+80°C

(-22°F to 176°F)
Ambient Operating Humidity 10%~90% RH
Optimal Operating Temperature 25°C (77°F)
Mechanical Housing Material Aluminum
Lens Material PC
Mounting Options
Pendant,Hanging Ring
Net weight
7.9KG
IP Rating IP66
Dimensions (L×W×H) 496x365x224mm

Warranty

Certificate

 5-7 years warranty
ETL DLC CB TUV CE ROHS SAA

Why H.T 80°C?

Housing Material: 6063 Aluminum Alloy

Driver Housing: Heavy Aluminum(Powder Coated)

Bakelite: H.T Resistant Bakelite Board(Phenolic)

(Isolating the thermal conductivity of the power to the fixture)

Anbotek Testing: 72H, Nine Point of Location..

Chamber Tem: 80.37°C

Power Supply: 83.51°C( Average)

Power Point Tc: 83.33°C

Light Module: 96.77°C( Average)

200W High Temperature LED Lights / Heavy Industrial LED Lighting ETL DLC CB ​

OVER 5 YEARS OF SUCCESS IN HIGH TEMP APPLICATIONS

With thousands of fixtures in operation in heavy industrial plants over the past decade, LED in Action is quickly becoming the industry standard for high temp applications.

High ambient temperature applications found in Steel Mills, Paper Plants, Glass Plants and other manufacturing facilities require specialized modifications to ensure the LED Lighting can withstand extremely hot environments.

Over the years, we’ve developed a number of solutions that have been proven to outlast current lighting in high temp applications.
