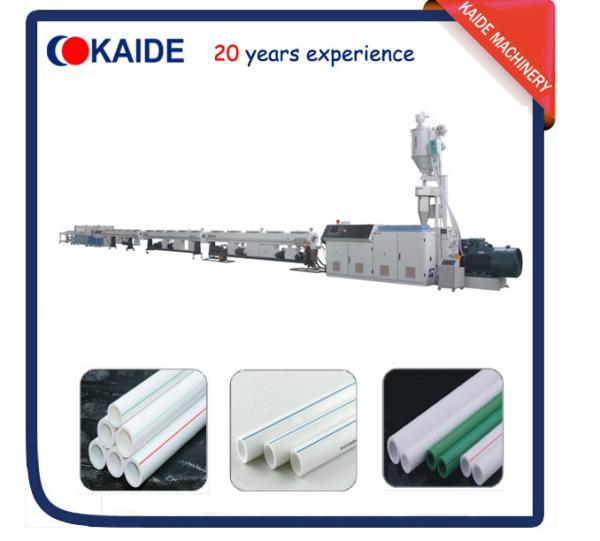

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
Specifications
Place of Origin :
Shangdong, China
Brand Name :
KAIDE
Certification :
CE, ISO
Model Number :
KD-PPR
MOQ :
1set
Price :
$40000-120000USD
Packaging Details :
soft film for sea transport in container
Delivery Time :
60days
Payment Terms :
TT; L/C
Supply Ability :
500 sets per year
Description

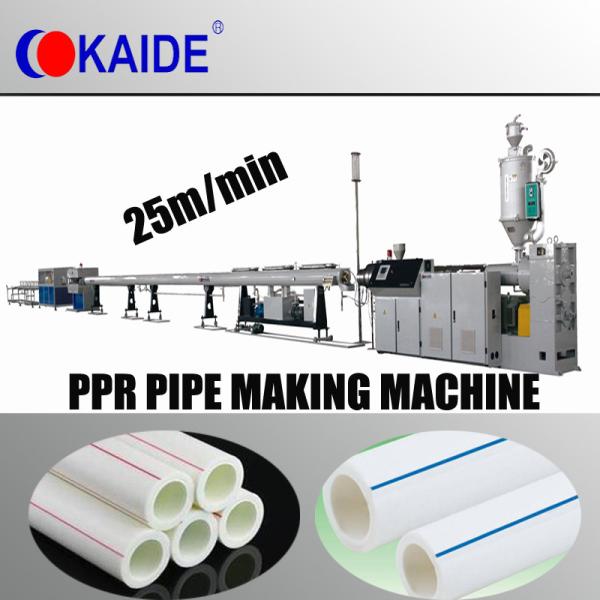

PPR Water Pipe Production Line/PPR Pipe Extrusion Line

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

KAIDE factory has focused on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe line and multi-layer composite pipe line. This high speed PPR pipe line has futher optimized based on our years experience, which speed can be up to 28m/min, with most advanced technology.

Technical Parameters of Pipe Production Line:

Line Model

Screw Diameter

L/D

Production Scope

Production Speed

Nominal Power

SJ-80

Ф80mm

33:1

ф20-63mm

28m/min

178KW

SJ-80

Ф80mm

33:1

ф20-63mm

20m/min

186KW

SJ-65

ф65mm

33:1

ф20-63mm

15m/min

119KW

Features of Pipe Production Line:

1) Extruder: high efficient five-section type screw, ensuring the rapid plasticizing dispersion effect, and realizing the high speed production.

2) Gravimeter: precise control system of pipe weight per meter, to realize the constancy of pipe weight and line running according to set parameters. The application of this system can shorten the start-up time and improve the produced pipe quality, and save raw material.

3) Die head: special designed spiral pressure storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure, realizing high speed and constant pressure extrusion of materials.

4) Calibrators:multi-sheet water immersion type calibrator, to realize the effective and even cooling & calibrating of the pipe

5) Vacuum calibrating & cooling tank: using high quality stainless steel; new designed cooling methos, with water immersion for small size and spray cooling for big size, to achieve a better cooling effect.

6) Tractor: high speed multi-group rooler clamping & belt type tractor, using imported frequency converter; the clamping force of any pitch can be adjusted freely, with high pulling speed and good stability.

7) Control system: SIEMENS PLC control system to ensure high precise & sync control of the while production line.

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory

Plastic Pipe Production Line for PPR Water Pipe 28m/min KAIDE factory
