Plastic pipe production line for HDPE duct making / PE micro-duct extrusion machine
Plastic pipe production line for HDPE duct making / PE micro-duct extrusion machine
Specifications
Brand Name :
KAIDE
Model Number :
HDPE
Certification :
CE, ISO
Place of Origin :
Shangdong, China
MOQ :
1set
Price :
$40000-80000USD
Payment Terms :
TT; L/C
Supply Ability :
500 sets per year
Delivery Time :
60days
Packaging Details :
soft film for sea transport in container
Description

HDPE Silicone Micro-duct Production Line/ Micro-duct bundle Production Line

Plastic pipe production line for HDPE duct making / PE micro-duct extrusion machine

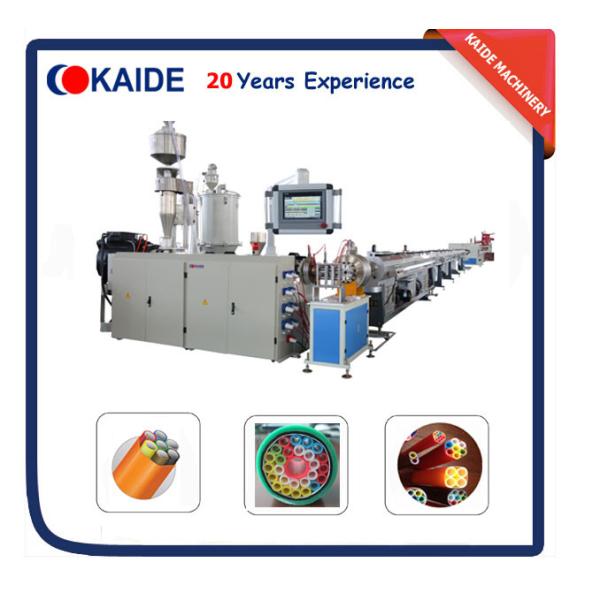

This composite pipe extrusion machine is used to produce the new type communication pipe, called tube bundle. The tube bundle is made by one micro duct or more than one micro duct grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.

The communication optical cable, cable or the electrical cable into the tube can be pressed into this tube bundle by the cable-pushing machine. At the same time, the strong airflow is forced into tube along the sealed storehouse by the air-compressor. This high-speed airflow forms huge pull which forces the optical cable to move ahead.

This PE tube bundle have the following advantages:


1)widely used
2)Network distribution is quite flexible and convenient
3)Increase the capacity of optical cable, fixed; decrease the friction among the optical cable.
4) Kinds of function
5)Safe and dependable tube system
6)Much more easier to operate, easy to maintain or replace the inner old optical cable.
7)Better physical performance
8)Longer lifespan

Main Technical Parameter for inner Micro-duct Production Line

Line Model Screw Diameter L/D Micro-duct Size Production Speed
MD-30 Ф60/45mm 36/30:1 7-14mm 30m/min
MD-50 Ф75/50mm 36/33:1 7-14mm 50m/min
