Double Outlet PPR Pipe Production Line Speed 70m/min PPR Water Pipe Extruder Machine
Double Outlet PPR Pipe Production Line Speed 70m/min PPR Water Pipe Extruder Machine
Specifications
Brand Name :
KAIDE
Model Number :
KDSG-60; KDSS-60; KDSS-75
Certification :
CE; ISO
Place of Origin :
Weifang, China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
60 days
Packaging Details :
Soft film with protection sponge
Product Name :
PPR Pipe Making Machine
Pipe size :
20-32mm
Production Speed :
30m/min; 50m/min and 60m/min
Outlet number :
two outlet one time
Control system :
SIEMENS PLC control
Pipe Strusture :
Single or two layer
Description

Double Strand PPR Water Pipe Production Line

——70m/min high speed!! Double extrusion & Double Pipe Color!

This double strand PPR pipe line is newly developed based on our years experience, which speed can be up to 70m/min, with most advanced technology. The produced pipe size range is 20mm, 25mm, 32mm.

this line can also be used to produce HDPE pipe or PERT pipe etc. Pls contact us for detailed price offers.

Technical Parameters of Pipe Production Line:

Line Model Screw Diameter L/D Production Scope Production Speed Nominal Power
KDSD-60 Ф60mm 36:1 φ20-32mm 15m/min×2 148KW
KDSS-60 Ф60mm/60mm 36:1 φ20-32mm 25m/min×2 188KW
KDSS-75 Ф75mm/60mm 36:1 φ20-32mm 30m/min×2 230KW

Features of Pipe Production Line:

1) Extruder: high efficient five-section type screw, ensuring the rapid plasticizing dispersion effect, and realizing the high speed production.

2) Die head: Double strand pipe extrusion die head mold is manufactured by imported CNC machine, with a pressure balance distribution device, in order to ensure the precise control of double extruded pipes in any condition.

3) Vacuum calibrating & cooling tank, tractor, cutter: The double strand pipe structure is specially applied in the vacuum calibrating tank, haul-off machine and cutting machine, with nice appearance and scientific design, which are very easy to operate and control.

4) Control system: SIEMENS PLC control system to ensure high precise & sync control of the while production line.

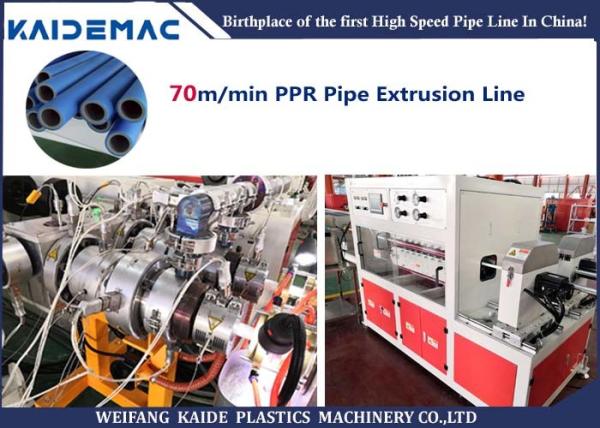

Other Reference Pictures:

Double Outlet PPR Pipe Production Line Speed 70m/min PPR Water Pipe Extruder Machine
