Multilayer Automobile PA Nylon Oil Tube Extrusion Machine
Automotive Fuel Tube Making Machine

PA multilayer composite pipe of automotive fuel system is internationally widely used in car fuel oil system which features a kind of portable, high performance and environmental protection line products.
PA automotive fuel tubes have different layer structure, like two layer, 3 layer and 5 layer with oxygen barrier. its outside diameter has 6 mm, 8 mm, 10 mm and other different specifications.

PA multilayer oxygen barrier pipe can effectively reduce the automobile emission pollution to the environment, and meet the higher environmental requirements. At the same time multilayer composite pipe possesses excellent resistance to penetration performance, can satisfy the EU-III standards.
.

Multilayer Pipe Structure:

1. Inner layer: PA 12
2. Inner adhesive layer
3. EVOH oxygen barrier layer
4. Outer adhesive layer
5. Outer layer: PA 12

TECHNICAL DATA

PA fuel tube sizes:

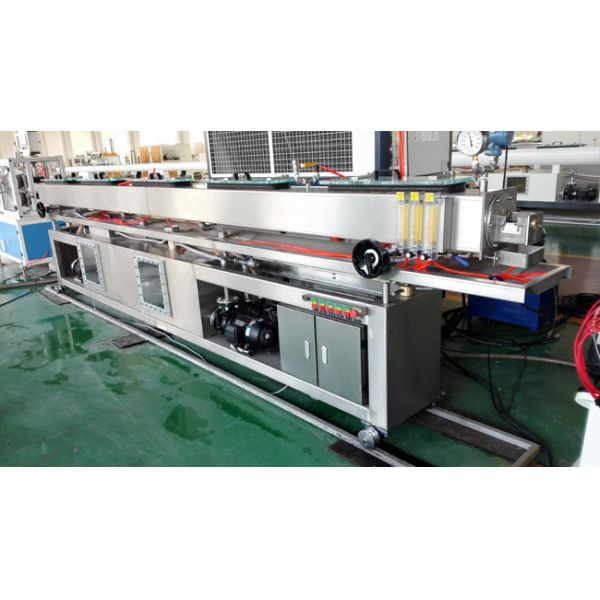

MULTILAYER AUTOMOBILE FUEL PIPE MACHINE

• Extruder is special designed for PA raw material, so that extrusion output and plastizizing quality are effectivly improved.

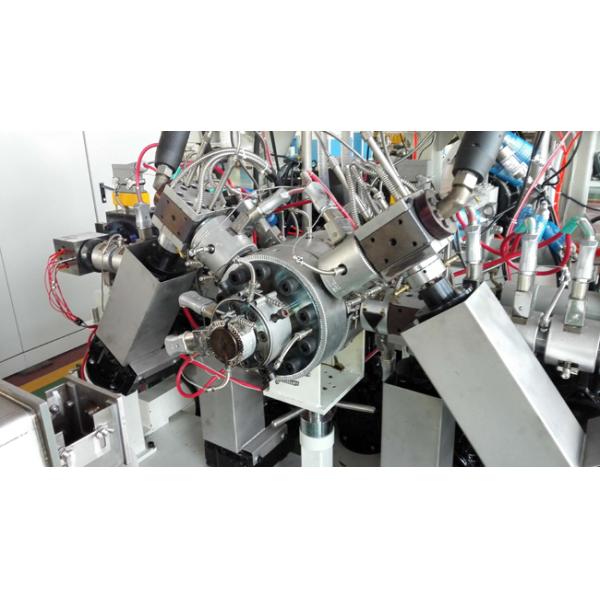

• Multilayer co-extrusion die head adopts special moulds steel, matching up with the unique multi-layer co-extrusion technology and high accuracy CNC processing to creat imcomparable features of high reliablity, usablility and high precision.
• Gravimetric material dosing system, thickness control system, and diameter measuring system are equipped to control produced pipe accuracy.
• SIEMENS PLC system to realize many inteligent operations, such as multi-machine linkage, sperate machine control, fault diagnosis, remote control etc. At same time, advanced on line nonitoring and control technologies, such as servo tracking technology, static digital filter technology etc, are used to ensure plastizing quality and produced pipe accuracy under high speed extrusion.
