20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min
20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min
20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min
20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min
Specifications
Brand Name :
KAIDE
Model Number :
KDGF-75
Certification :
CE, ISO
Place of Origin :
Shangdong, China
MOQ :
1set
Price :
$50000-80000USD
Payment Terms :
TT; L/C
Supply Ability :
500 sets per year
Delivery Time :
60days
Packaging Details :
soft film for sea transport in container
Product Name :
3 layer PPR Glassfiber PPR Pipe Machine
Diameter range :
20-110mm
Output :
550kgs/h
Speed :
28m/min for 20*2.8mm PPR pipe
Control System :
PLC control with remote control system
Description

Multilayer PPR Pipe Extruder Machine

3 Layer PPR Pipe Making Machine

Do you need a higher production speed PPR pipe machine?

Do you want a low energy consumption of PPR pipe making machine?

Do you want to produce PPR pipe with low production cost, and high speed?

below pipe production line from KAIDE can meet you such requirement. It's used to produce 3 layer PPR pipes, PPR glassfiber PPR pipes, with diameter range from 20mm up to 110mm.

Production speed is 28m/min based on pipe size 20×2.8mm.

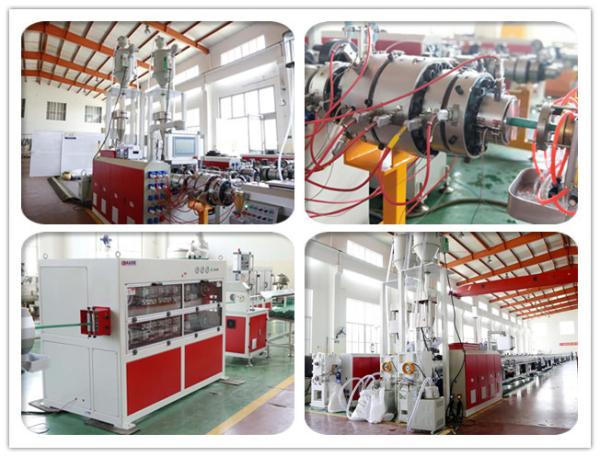

20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min

TECHNICAL DATA:

Line Model Screw Diameter L/D Ratio Production Scope Extruder Output
KDGF-75 75mm/60mm 36:1 20mm-110mm 550kgs/h

- SJ-75 Extruder for Inner/Outer Layer PPR
- SJ-60 Extruder for Middle Layer PPR Glassfiber

- SJ-25 Small Extruder for Strips
- 3 Layer Co-extrusion Die Head & Moulds
- Vacuum Calibration Cooling Tank 1set
- Water Cooling Tank 4 sets
- Haul-off Machine 1 set
- Combinded Type Cutting Machine
- Pipe Stacker
- Siemens PLC Computer System
- Gravimeter System for Optional

Main Features of Pipe Machine

EXRUDERS

High efficient wear-resisting extruder for fiber reinforced PPR material, to guarantee the long service life and high speed extrusion;

Long L/D ratio screw design with better plasticizing effect;

High quality gear reducer
DIE HEAD

Adjustable co-extrusion die head, our patent product, can composite multi-layer evenly and rapidly and get optimal thickness of each layer quickly, without adjusting extruder rotating speed.
VACCUM TANK & COOLING TANK

High quality SS304 material is used for vaccum tank and cooling tank;

Special design vacuum tank with two chamber structure to get stable vacuum;

vacuum pump adopts full automatic closed-loop negative pressure regulation, constant vacuum nagative pressure to ensure the stabilit of pipe O.D, and reducing operator skills requirement and reducing energy consumption. And there would be alarm if over setting data.
HAUL-OFF MACHINE

Haul-off machine driven by servo motor, with faster reaction speed and better stablility
CUTTING MACHINE

Small size 20-32mm is high speed knife cutting, driven by servo motor, with smooth cutting surface;

Size 40-110mm is dustless saw cutting, with SIEMENS PLC control, by parameter setting for convenient operation. Special design for different diameter cutting adjustment is easy and conveneince
PLC SYSTEM

SIMENS programmable PLC control system with big color touch screen; with remote control system. In case there is any problem on the machine, our engineer can analysis the problem here and solve the problem.

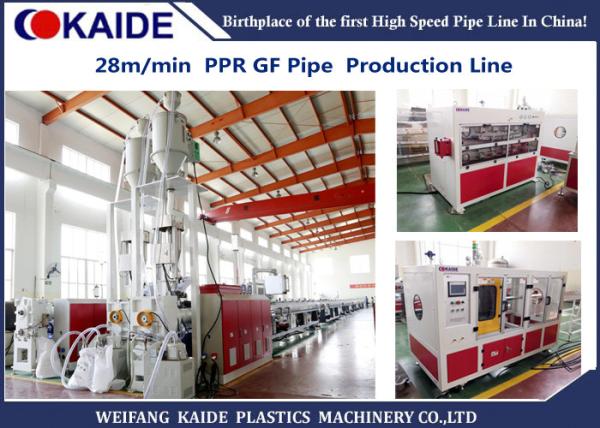

20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min

20-110mm Multilayer PPR pipe with Glassfiber Layer Extrusion Machine speed 28m/min

Contact us right now to get clear video and quotation!!
