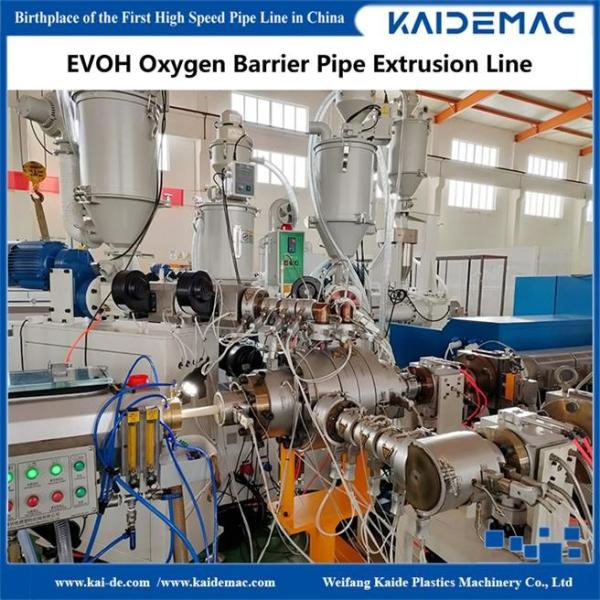

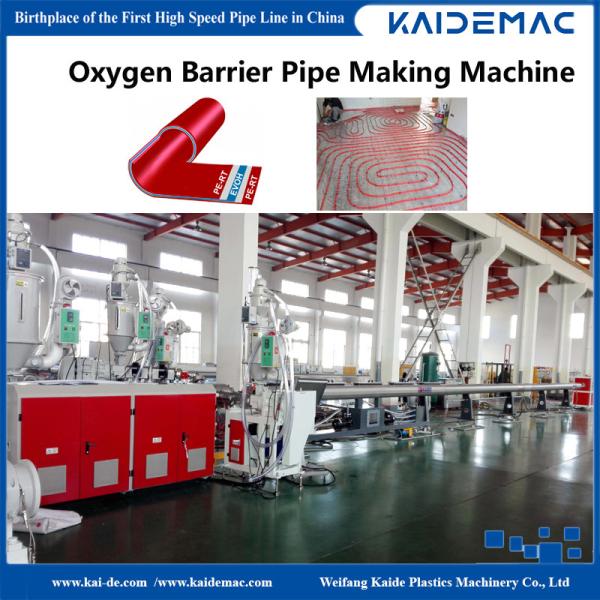

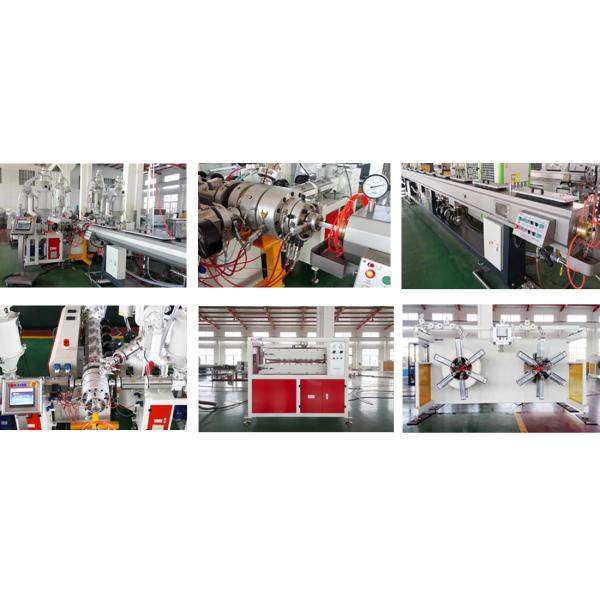

Below pipe extrusion machine is used to produce 5 layer PERT pipes with EVOH oxygen barrier layer. This oxygen barrier pipe can effectively prevent oxygen permeating into the heating system, and thereby eliminate bacteria growth inside the pipes to ensure clean water and better sanitation, as well as protect metal parts in the system from oxidization to ensure a much longer service life.
The pert tubing with oxygen barrier is more flexible and easier to install than other piping materials in radiant heating and hydromic heating systems.
There are several different speed models for your option, the maximum speed is up to 60m/min!

KAIDE factory focus on plastic pipe extrusion only, especially for high speed pipe machine and multi-layer pipe machine. Regarding EVOH pipe machine, the market share is over 85% with plenty practical experience and advanced technology.

TECHNICAL DATA FOR FIVE LAYER:

1) High effiency extruder, with driven by AC motor, and controlled by ABB inverter. EVOH extruder screw is special designed as per EVOH ram material features. 5 number of extruders are equipped for production stability. And each layer can be controlled separately.

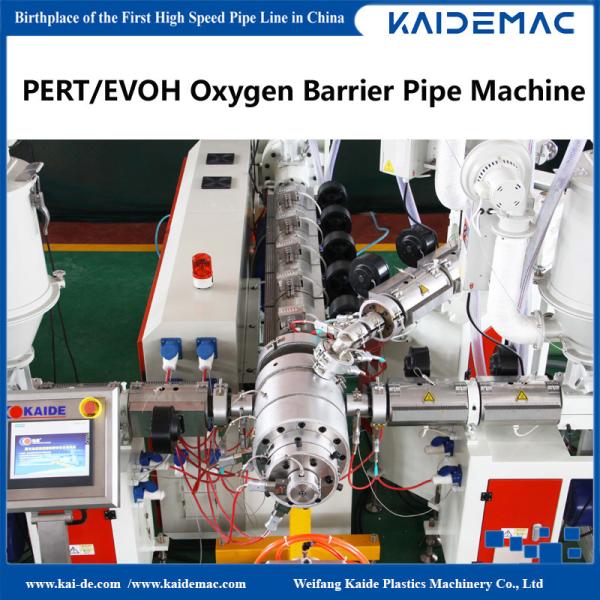

2)Special designed 5 layer co-extrusion die head, to extrude each layer evenly and compond firmly; die head is made of high quality mould steel 40Cr, processed by imported CNC machinery. The tipe and die mould surface are chrome-painted, to reduce friction force, increase its hardness and longer its service life, also easy to clean.

3)Vacuum tank & Cooling tank
made by high quality SS304; automatic vacuum control system is equipped as an option, to ensure stable running of the line at high speed.
Vacuum degree will be automatically adjusted by data setting on PLC system.

4)Winding Machine
servo type traversing device, driven by SIEMENS servo motor; better for high coiling speed
with tension control device to auto adjust winding speed, ensure even coil strength
separate SIEMENS PLC control system
Auto stop protection function while sensor pipe end
