Flat Emitter Drip Tape Production Machine Speed 250m/min

NANO Dripper Drip Tape Production Line Wall Thickness 0.15-0.4mm

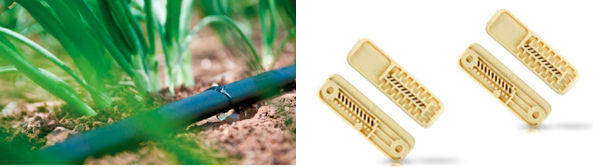

Drip irrigation tape is a flat, thin-walled hose containing pre-spaced dripper emitters, that expands when filled with water. The flat drip emitters are welded into to the tape at certain space as per growing plans needs.

Below are such making machine for this flat drip irrigation tape making.

There are mainly three different models for those drip tape machines, KDPD-I (speed 80m/min), KDPE-II (speed 180m/min) and KDPD-III (speed 250m/min). They are different in production speed and produced drip tape thickness, and what kind of drippers you are using.

250m/min speed model is special designed for NANO type dripper with small size. The general size of this small dripper is 6mm×18mm, with weight only 0.1 gram. In the market, normal dripper size is about 8mm ×34mm, with wight about 0.3gram. So only this, a lot of production cost can be saved.

TECHINICAL DATA FOR 250m/min Speed model

DRIP IRRIGATION TAPE MACHINE DETAIL INTRODUCTION -- 250m/min speed model

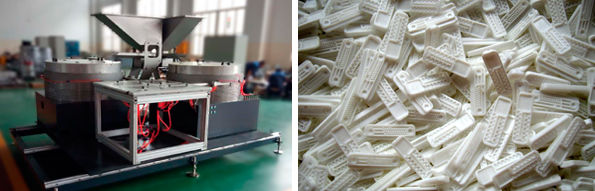

1. Dripper sorting & inserting machine

Two dripper feeder and sorting devices, with identifying speed more than 2000pcs/min, to ensure dripper supply

And buffer equipped, to guarrante continuous dripper supply if any stuck in feeding process

Dripper inserting is driven by servo motor; Dripper space is set on PLC diretly

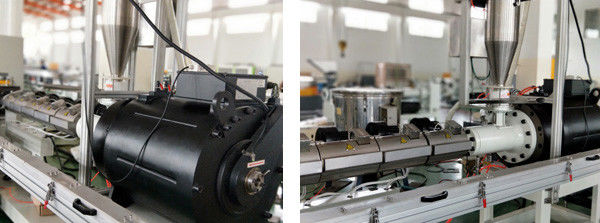

2. Extruder & Cross Die Head

Extruder driven by servo motor; with great benefit of energy saving and stable operation

SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

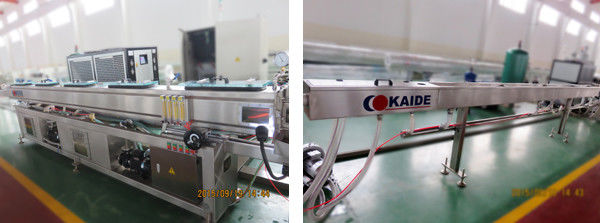

3. Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump

special design calibrator for drip tape making

air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

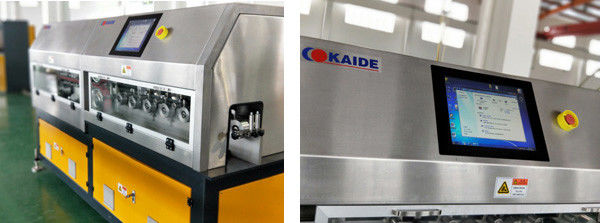

4. Perforating Machine & Tractor

driven by servo motor and servo controller, with high precision punching degree

Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition

Intelligent control system with remote control system

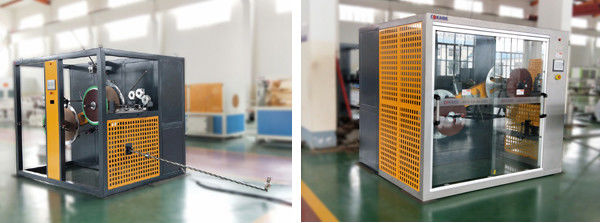

5. Winding Machine

servo type traversing device, driven by SIEMENS servo motor

Auto tape cutting and reel changing;

A tape accumulator is equipped while using for reel changing, to match with such higher speed

separate SIEMENS PLC control system
