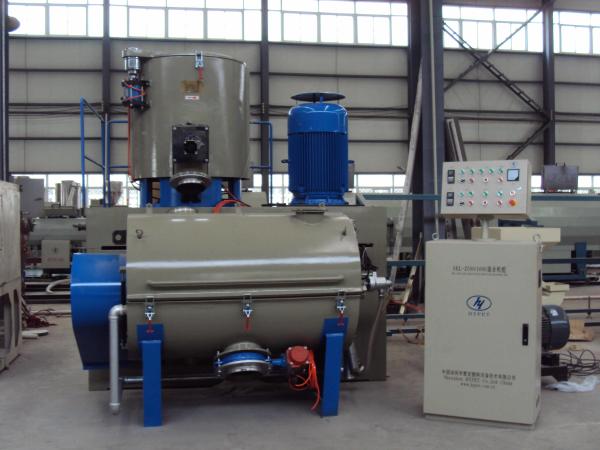

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
Specifications
Brand Name :
Hypet
Model Number :
1300/4500 hot cold mixer
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1set
Price :
USD 58700/set
Payment Terms :
L/C, T/T
Supply Ability :
50set/month
Delivery Time :
35~45days
Packaging Details :
Standard Package for sea shipment
Motor Power :
200KW
Cooling Way :
Water Cooling
Structure :
Horizontal
Max Output :
1960-2400 kg/h (Depend on formulation)
Key parts warranty :
1year
Engineer installation service :
Yes
Description

1.1300/4500 hot cold mixer
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing



2.Speciality of HYPET 1300/4500 hot cold mixer

SN Speciality
1 For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2 Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3 The lid to take double-sealed, open the lid using pneumatic mode;
4 Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5 It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer



3.Commercial items

SN Item Quantity Unit Price/USD Total Price/USD
1 1300/4500 hot cold mixer 1 58700 58700
Total in EXW 58700
For option
1 Raw material vacuum auto loader system for all mixer Including raw material station, and vacuum auto loader device 1 8500 8500
2 Auto-loader in screw type 6 m long 1 780 780
3 Material silo in 2.5 tons 1 2400 2400
4 Vacuum auto feeder to the extruder 1 7800 7800


4.Main Specification of the Machine

SN Type Specification Description
1 Model 1300/4500
2 Structure Horizontal
3 Hot mixing tank General capacity 1300L
Effective capacity 975L
Feeding cappacity 490kg/batch
Output 1960-2400 kg/h (Depend on formulation)
Motor Power 200kw
Mixing time 11-13 min/batch
Wall thickness 8-12mm
4 Cold mixing tank General capacity 4500L
Effective capacity 2880L
Motor Power 45kw
mixer structure Horizontal
cooling way Water cooling
cooling time 8-10min
wall thickness 8-12mm
5 Packing information with inverter Delta Yes
weight kg 10000 kg
Dimension 4397 x 3980 x 3880 mm



5.Cooperative Brands:
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing


6.Exhibition:
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
