Specifications
Brand Name :
Hypet
Model Number :
HYCT150 water cooling tower
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1set
Price :
USD 3250/set
Payment Terms :
L/C, T/T
Supply Ability :
50set/month
Delivery Time :
35~45days
Packaging Details :
Standard Package for sea shipment
Key parts warranty :
1year
Engineer installation service :
Yes
Cooling tower type :
Counter flow round water tower
Cooling capacity :
585600 kcal/h
Power Supply :
380V/3P/50Hz
Motor power :
1.5 kw
Description

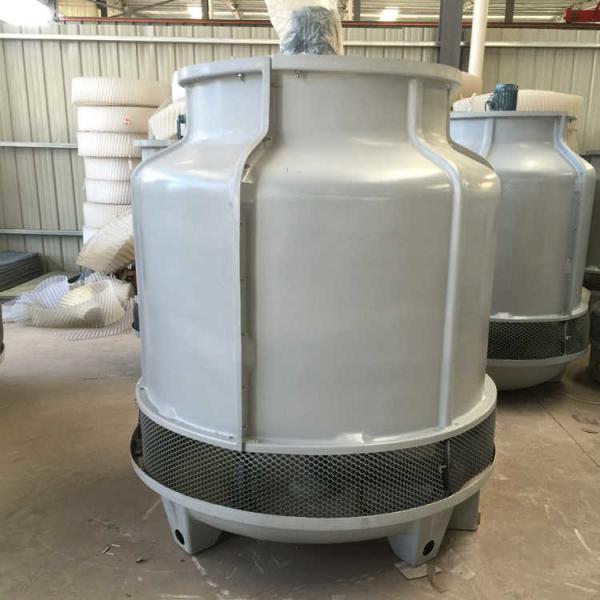

1. HYCT150 water cooling tower
High Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling Chiiling

High Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling Chiiling

High Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling ChiilingHigh Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling Chiiling

High Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling ChiilingHigh Cooling Capacity Big Volume Cooling tower 150t HYCT150 Application for water cooling Chiiling


2.HYPET Special features

1). The exterior of the tower body is made of imported gel coat,and the interior is made of high quality glass fiber reinforced plastic.

2). The applicable temperature of the normal temperature cooling tower packing is 0-60 degrees, which water distribution capacity is strong and the resistance is small.

3).Stainless steel bearings,flexible operation,even water distribution;ABS water pipe is used,and a water collecting plate is installed on the water pipe.

4). Low noise ABS fan blades designed according to cooling tower parameters.

5). The low-noise motor specially designed for cooling towers has strong power and long life.

6). It has the function of automatic switch pipeline and can control the water level.


3.Commercial items

SN Item Quantity Unit Price/USD Total Price/USD
1 Water cooling tower HYCT150 1 3250 3250
Total in EXW


4.Main Specification of the Machine

SN Description Specification
1 Cooling tower type Counter flow round water tower
2 Cooling tower model HYCT-150
3 Cooling circulating water volume 117 M3/h
4 Inlet water temperature/outlet water temperature 37 ℃/32 ℃
5 Ambient dry bulb/wet bulb temperature 31.5 ℃/27 ℃
6 Cooling capacity 585600 kcal/h
7 Noise value 60 dB(A)
8 Power Supply 380V/3P/50Hz
9 Water quality requirements PH= 6-8
10 Gas-water ratio 0.62 kg/kg
11 Flying water loss ≤0.02%
12 Evaporation loss ≤0.833%
13 Net weight 580 kg
14 Operating weight 1680 kg
15 Fan type Axial flow type
16 Air volume 64350 M3/h
17 Fan speed 710 r/min
18 Blade diameter 1450 mm
19 Number of blades 4 pcs/set
20 Transmission mode Direct drive
21 motor speed 710 r/min
22 Motor power 2.2 kw
23 Motor start mode Direct start
24 Water tower diameter 2920 mm
25 Water tower height 3045 mm
26 Size of inlet/outlet pipe 150 mm/150 mm
27 Size of full pipe/drain pipe 25 mm/25 mm
28 Automatic water filling size 25 mm
29 Motor Fully enclosed waterproof type
30 Fan A.B.S
31 Shell body High quality glass fiber mat and resin synthesis
32 basin High quality glass fiber mat and resin synthesis
33 Sprinkler system PVC
34 film PVC, Flame retardant type
35 Float valve PVC
36 Air inlet system PVC
