HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
Specifications
Brand Name :
WingsPlastic
Model Number :
SJ70/32
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets
Delivery Time :
45 working days
Packaging Details :
Wooden Box or Film Packing
Condition :
New
Powder Condition :
380V/50HZ or customized
Capacity :
80-120kg/h or Customized
Pipe diameters :
40-150mm or customized
Suitable materials :
HDPE LDPE LLDPE Materials
Description

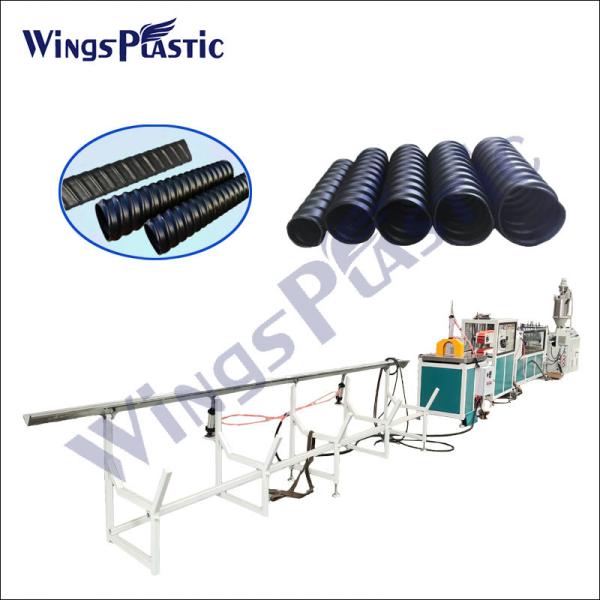

HDPE / PVC Bridge Prestressed Pipe Manufacturing Machine / PE Corrugated Pipe Production Line

Qingdao Wings Plastic Technology Co., LTD. The company is focusing on research and development of the continuous production of PE, PVC corrugated pipe production line manufacturing. The line could produce spiral corrugated pipe by HDPE or PVC raw materials.

This kind of spiral corrugated pipe is high temperature resistance, corrosion resistance, wear resistance, high strength, widely used in bridge prestressed pipe, underground cable threading sheath, etc.

The machine inclued: SJ - 70/30 type single screw extruder, die head mold, forming machine, cutting machine, winder system or stacking machine. Product material is PVC/PE, optimal pipe diameter range for Φ 50-200 mm Φ. Simple operation, good integrity, continuous and stable production, low noise, high efficiency, long service life.

The spiral corrugated pipe product has special spiral physical structure, the pipe material mechanical performance is good, the compressive strength, pipe buried under deformation, inner spiral uniform cable around the cooling efficiency and effectively protect the security of the cable.

HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line

The Main Parameters of HDPE / PVC Bridge Prestressed Pipe Manufacturing Machine / Extrusion Line:

Model SJ-70 65/132
L/D 30:1 65/132
Pipe Diameter(mm) 50-200 50-200
Output(kg/h) 150 200
Production speed (m/min) 1.5 1.5
Power (kw) 22 37

HDPE LDPE PVC Pipe Manufacturing Machine Spiral PE Corrugated Pipe Extrusion Line
