Specifications
Brand Name :
WingsPlastic
Model Number :
SJ65/33
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets
Delivery Time :
45 working days
Packaging Details :
Wooden Box or Film Packing
Condition :
New
Powder Condition :
380V/50HZ or customized
Capacity :
180kg/h or Customized
Pipe diameters :
40-110mm or customized
Suitable materials :
EVA LLDPE materials
Speed :
1-5m/min
Screw :
Single Screw
HS Code :
84772090
Origin :
Qingdao China
After-sales Service :
1 year
Description

Plastic HDPE DWC Corrugated Pipe Extruder Machine Manufacturer In China

HDPE double wall corrugated pipes (double-layer twisted pipes) are one mould profile two layer extruding. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation.

DWC Pipe Features:

1. High tensile strength, compressive resistance and well impact resistance;
2. Anti-uneven settling property, and can be applicable to soft clay shifting sand foundation;
3. Convenient for connection with non-breakable joint.
4. Smooth inner wall, high friction resistance, large quantity of water flowing.
5. Decay resistance, "green pipe", avoid secondary pollution.
6. Light weight, easy for carrying and transporting, convenient for construction with low comprehensive cost.

DWC Pipe Corrugator Machinery Technology Informations:

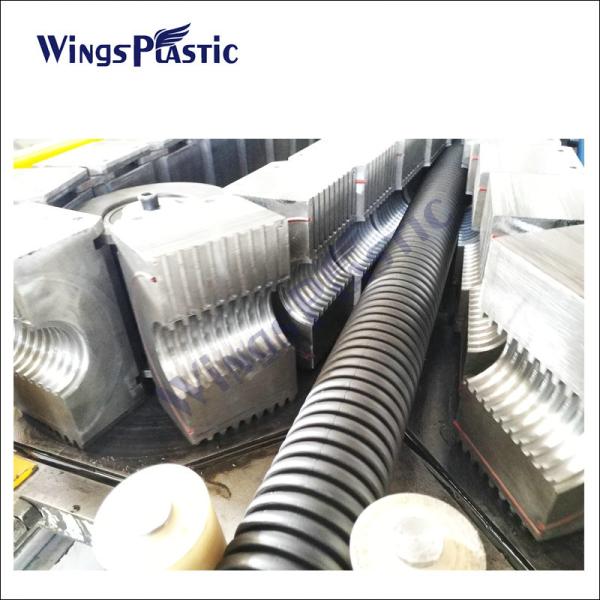

Corrugator is adopted horizontal structure with chain type transmission, equipped with open water cooling system and vacuum forming system. It greatly increases the production speed. The belling on line function decreases investment cost and improves production efficiency. Mold block moving adopts synchronous upper and lower mechanical drive system and advanced self-lubrication system. It assures moving accuracy and pipe quality stability.

HDPE DWC Pipe Extrusion Machinery Informations:

Name Model

Dimension

(L×W×H)mm

Total Power

(kw)

Weight

(kg)
Extruder

SJ90×30

SJ75×30

3780×600×3000

3400×560×3000

110(max)

55(max)

6000

4500

Mould Blocks

(ID)

 PE200 2000×Φ326

50 (max)

 2100
PE300 2300×Φ440 2200
PE400 2400
PE500 2600
Corrugator SBCJ500 4600×2120×2180 50(max) 10000
Water Tank LQB500 5100×1000×1500 4 1000
Cutter QG6030 4252×2100×2400 7.5 3600
Unloading Bracket JGJ500 5220×2100×830 230
