Specifications
Brand Name :
MEPER
Model Number :
MP80FD
Certification :
CE/ISO9001:2008
Place of Origin :
NINGBO,CHINA
MOQ :
1 Set
Payment Terms :
L/C, T/T
Delivery Time :
25-55 Work Days
Packaging Details :
Wooden pallet(Standard) Wooden case(Optional)
Container Capacity :
2X3L
Applicable Material :
PP,ADHENSIVE,EVOH,ADHENSIVE,REPP
Multi-layer :
3-6 layer
PLC :
B&R
Station :
Double Station
Product :
2x3L Bottle
Description

High 2x3L Bottle Extrusion Blow Molding Machine Double Station MP80FD

Brief introduction

Mold clamping structure adopting advanced four shafts to clamp the mold ,Can clamp the mold firmly ,stable and reliable ,central mold platen is provided with protruding structure ,binging convenience to installing and dismantling molds, making the design human friendly

Piling out system adopting high performance transducer to drive ,saving power by above 30%,can be equipped with 100points wall ,thickness control ,Adopting foreign famous brand MOOG, improving the uniformity of the finished products ,lowering the weight of the finished products ,Flow and pre-sure proportional control valve. consuming less power ,high output ,of high performance price Ratio.

With self-functioned and stable PLC control system ,as well as the integrative of the machine ,electric devices and hydraulic digital controlled and temperature control of PID have been achieved ,The equipment’s operation speed and stability have been greatly improved ,Friendly operational panel ,easy, convenient

All the process are controlled by electromagnetic valves.

1) Left blow pin blowing: Electromagnet T21 of left blow pin blowing valve is connected. Blowing begins through pressure relief valve. Air valve electromagnet T21 is disconnected and venting begins.

2) Right blow pin blowing: Electromagnet T22 of right blow pin blowing valve is connected. Blowing begins through pressure relief valve. Air valve electromagnet T22 is disconnected and venting begins.

3) Cutter: Electromagnet T23 of cutter air valve is connected. Cutter moves forward. Air valve is disconnected after cutting material. Cutter is repositated. Cylinder action speed can be controlled by throttle valve.

4)deflashing system:the cutter is connected with T24.T25, Cutter in, after finishing deflesh, cutter is unconnected, cutter is reset, throttle valve can adjust the speed of air cylinder

5) The volume of head blowing is controlled by pressure regulating valve.

Parameters MP80FD
Material PE PP PVC PA…
Max container capacity 10L
Number of die 1,2,3,4,6
Machine Dimension(LxWxH) 3.3x5.5x2.8m
Total weight 12ton
Clamping force 150kN
Platen openning stokes 240-620mm
Toggle stokes 600mm
Max mould size(WxH) 550x430mm
Screw diameter 80mm
Screw L/D ratio 24 L/D
(HDPE) Plasticizing capacity 108kg/h
Screw heating zone 4 zone
Screw heating power 15.6kw
Screw fan power 0.14kw
Extrusion motor power 30kw
Die head heating zone 8 zone
Power of die heating 10.3kw
Total power of machine 92kw
Power of oil pump motor 31kw
Air pressure 0.6-0.8 Mpa
Average energy consumption 61kw
Consumption compression air 1.2m³/min
Consumption cooling water 80L/min

Standard Features:

Auto Lubrication

Water Cooled Modular Blow Pin

Hot Wire Cutting

Positioning Hole For Quick Mold Change

Adjustable Die head

Linear Transducer

FRL(Filter Regulator Lubricator) for Pneumatic

Proportional Hydraulic System fro better control

Swing and Adjustable Extrusion Platform

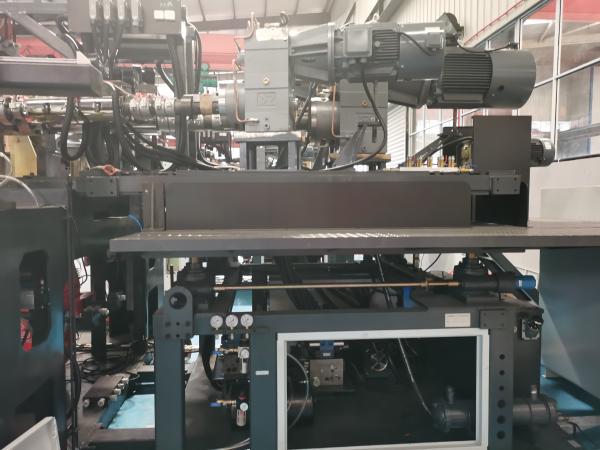

2 X 3L Bottle Extrusion Blow Molding Machine Double Station MP80FD2 X 3L Bottle Extrusion Blow Molding Machine Double Station MP80FD
