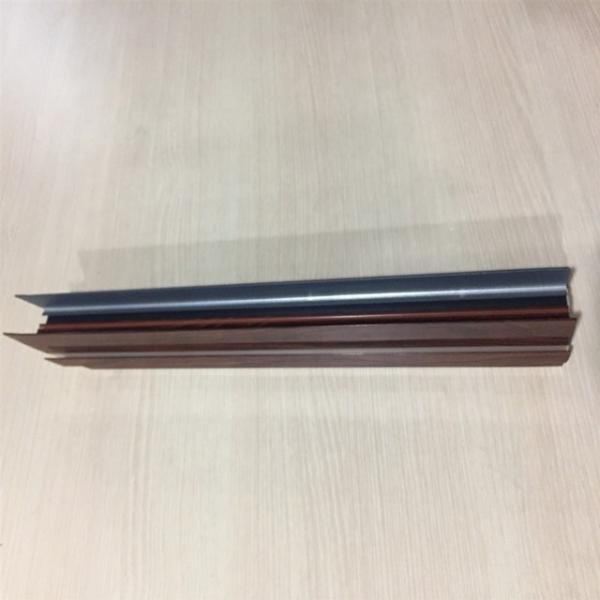

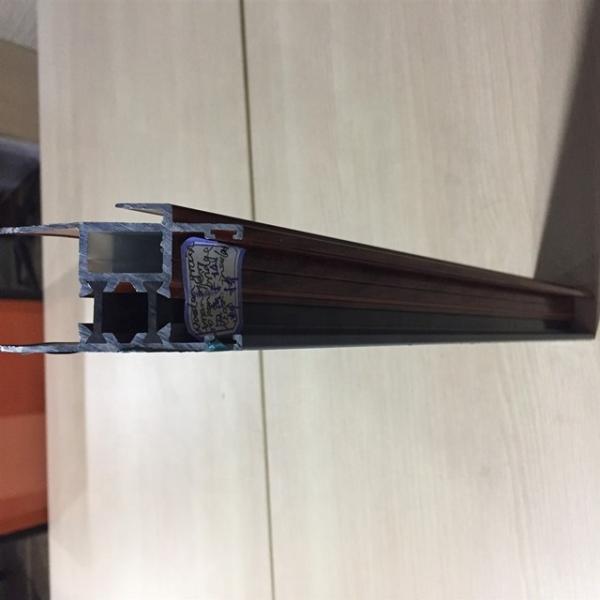

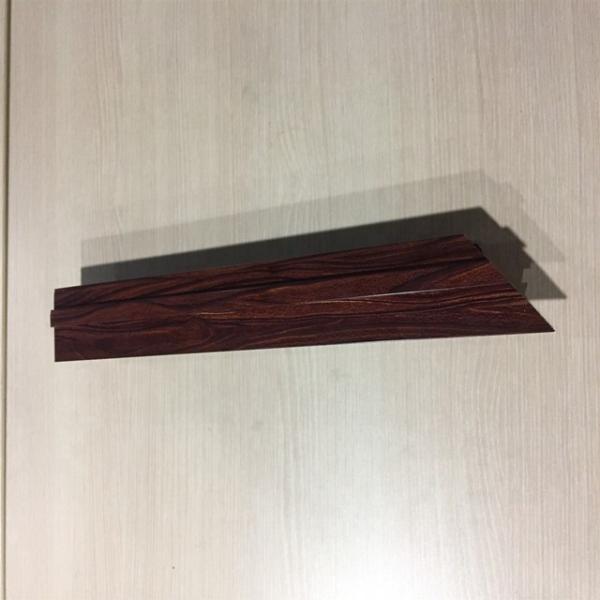

High Strength Powder Coated Aluminum Profile For Windows And Doors
High Strength Powder Coated Aluminum Profile For Windows And Doors
High Strength Powder Coated Aluminum Profile For Windows And Doors
High Strength Powder Coated Aluminum Profile For Windows And Doors
High Strength Powder Coated Aluminum Profile For Windows And Doors
High Strength Powder Coated Aluminum Profile For Windows And Doors
Specifications
Place of Origin :
China
Model Number :
HL-50
Brand Name :
Huilv
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
MOQ :
300Kg
Packaging Details :
Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape
Delivery Time :
Within 5-15 working days
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000Tons/Year
Grade :
6000 Series
Temper :
T3-T8
Application :
Door & Window
Shape :
Square
Alloy Or Not :
Is Alloy
Product name :
High Strength Powder Coated Aluminum Profile For Windows And Doors
Surface treatment :
powder coating, anodizing, electrophoresis, wood grain transfer
Lead Time :
15-20 Working Days
Color :
Customized Color
Length :
Custom Length
Type :
OEM Aluminum Extrusions Profiles
MOQ :
500KG
Material :
Alloy 6063/6061/6005/6060/6463/6082 T5/T6
Payment term :
TT, LC, Negotiate
Package Type :
Protective film, EPE, Shrink film, Kraft paper, Wooden frame and so on as your needs for aluminum profile prices in china.
Description

High Strength Powder Coated Aluminum Profile For Windows And Doors

Chemical Composition:

AlloyChemical Composition
SiFeCuMnMgCrZnTiOthersAl(Min)
60050.6-0.90.350.10.10.4-0.60.10.10.10.15rest
60630.2-0.60.350.10.10.45-0.90.10.10.10.15rest
60610.4-0.80.70.15-0.40.150.8-1.20.04-0.350.250.150.15rest


Mechanical Properties

AlloyTemperThicknessT.S.Y.SELOG.Hardness
σb (MPa)σ0.2 (MPa)δ%HVHW
6005T5≥ 0.8≥260≥240≥10≥85≥15


6063

T4≥ 0.8≥130≥65≥12--
T5≥ 0.8≥160≥110≥8≥58≥8
T6≥ 0.8≥205≥180≥8≥65≥10
6061T4≥ 0.8≥180≥110≥16≥65≥10
T6≥ 0.8≥265≥245≥8≥85≥15.5

Product Description:

Specifications

1.Aluminium profiles 6000 series
2.ISO9001,14001,EN,SASO, etc
3.Manufacture,Competitive price,high quality.
4.Max size:350mm
PRODUCTION CAPACITY: 50,000 TONS PER YEAR
CERFICATE: ISO9001 ISO14001 EN SASO, etc
ALUMINIUM PROFILE SURFACE TREATMENT:
1.MILL FINISH
2.ANODIZING
3.SANDING BLASTING
4.POWDER COATING
5.ELECTROPHORESIS
6.WOODEN GRAIN
7.THERMAL BREAK PROFILES
PRESS MACHINE: 630 tons to 2500 tons
MINIMUM QUANTITY: 1 TON
PACKING:HEATED SHRINK FILM OR Wrapping paper
FOB PORT: SHANGHAI, WUHU, NANJING
PAYMENT WAY:T/T or L/C
TEMPER: T5,T6,etc.
ALLOY:6063,6061,6060,6082,etc.
QUALITY STANDARD:GB/T 5237.1-2008

Material6000series
TemperT3-T8
ThicknessGeneral profiles thickness: 0.8 - 5.0 mm;
Anodized protection thickness: 8 - 25 um;
Powder coating color thickness: 40 - 120 um.
LengthAccording to your requirement,Max 6.4 meters
ShapeSquare, Rectangle, Round, Flat, Angle, T profile etc.
Surface TreatmentAnodized,powder coated,sand blasted, polishing,mill finish,etc
Colorsilver, champagne, black, white, mirror, customized request available.
ApplicationAutomated machinery and equipment, electronic machinery industry, production lines, assembly line workbench, screens, industrial fences and various frames, display stands, shelves, mechanical dust seals, etc.
Optional MachiningCutting,drilling,chamfering,stamping,CNC milling,etc
OEM serviceAvailable for aluminum profiles
CharacteristicsStrong, stylish, durable, corrosion-resistant.
Packing DetailsInside : packed with plastic film to protect each piece.
Outside: Wrap to be bundles by waterproof craft paper or EPE film.
Customized as customers request is available.
