T8 Electrophoresis Finish Window Aluminum Profile Extrusions
T8 Electrophoresis Finish Window Aluminum Profile Extrusions
T8 Electrophoresis Finish Window Aluminum Profile Extrusions
T8 Electrophoresis Finish Window Aluminum Profile Extrusions
Specifications
Brand Name :
Huilv
Model Number :
(HL2)85
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50,000 Tons per Year
Delivery Time :
Within 5-15 working days
Packaging Details :
inner protection film stick on each profile, outter packed by the carton.
Window frame material :
Alloy 6063/6061/6005/6060
Temper :
T3-T8
Shape :
T - Profile, T-shape,Square,Round,Customized
Processing Service :
Bending, Welding, Punching, cutting
Color Of Profile :
Black, White, Bronze, Different Colors Optional
Application area :
Industrial, Door And Window, Construction, Building & Construction, Window Frame
After sale service :
all kinds of technical supports
frame thickness :
1.2mm, 1.4mm, customized
Product name :
Aluminum extrusion profiles
length :
6m or customized
Description

Extrusion Aluminum profiles of siliding windows


1. Special alloy and temper are acceptable,for example:6060,6061,6005,etc.Temper can be T5/T6.
2. High corrosion resistance, high weather resistance and good wear resistance.
3. Exquisite specification quality control
4. Simple processing,assembly and installation result in high efficiency.
5. Various design for different needs,our own mould workshop and experienced engineer could provide timely and qualified moulds.
6. Application:Widely used in architectural areas.


Packaging & Delivery

Packaging Details: Package is up to customers requirement we have many kinds of packing for your choice, like shrink wrapped film, rolling up film, craft papar, pvc, ect

Port: Shanghai or others


Product Details:

Description

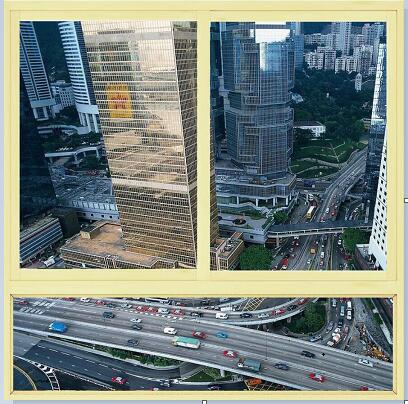

Sliding Window Frame electrophoresis
Window profiles Thickness

( 0.6, 0.7, 0.8, 1.2, 1.4, 2.0 ) mm OR customized
Material

Aluminum Alloy 6061 6063 6005 6060 T5 T6

Annealing Treatment

 T5 T6
Colors Silver White ,Bronze , Champagne, Black, (RAL series)etc. According to your sample.
Glass specification 6mm+12A+6mm
Decoration Film thickness Anodizing 10um,electrophoresis 20um,powder coating 40um

Mold fee

 Refund after quantity reach 5 tons appoximately for each kind
Package

1. Pearl cotton foam for each profile;
2. Wrap with shrink film exterior;
3. Packed according to customer request.
Advantages/Features

We have our own design and manufacturing departments workshop.
Payment 30% down payment by T/T and rest beforoe shipment. Or L/C or we can discuss.
Shipping term EXW, FOB, CIF or discussed.
Shipping port

Shanghai/Nanjing/Wuhu Port

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T3-T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Impurity Al
Unit Total
6063 (0.2-0.6)% <0.35% <0.1 <0.1 0.45-0.9 <0.1 <0.1 <0.1 <0.05 <0.15 all the rest
6061 0.4-0.8 0.7 0.15-0.4 <0.15 0.8-1.2 0.04-0.35 <0.25 <0.15 <0.05 <0.15 all the rest
6005 0.6-0.9 <0.35 <0.1 <0.1 0.4-0.9 0.1 <0.1 <0.1 <0.05 <0.15 all the rest
6060 0.3-0.6 0.35-0.6 0.1-0.3 <0.1 <0.1 <0.15 <0.05 <0.1 <0.05 <0.15 all the rest

T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).

T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).


Product Pictures:
T8 Electrophoresis Finish Window Aluminum Profile Extrusions
T8 Electrophoresis Finish Window Aluminum Profile Extrusions
T8 Electrophoresis Finish Window Aluminum Profile Extrusions

1. Extrusion Line

2. Wood Transfer Line

3. Powder Coating Line

4. Anodize Line

5. Polish Line

T8 Electrophoresis Finish Window Aluminum Profile Extrusions

Why Us:

1. We are a self-own factory, which specializes in producing Aluminum Alloy profile for windows and doors.

2. One-stop Service.
3. 24 hours online services.
4. .Covers an area of 100,000 square meters and owns more than 300 skilled employees..
5. 15 years' professional experience in research, manufacturing and marketing.
6. Design according to the customers' requirements.

Overseas Market:

Africa: Algeria, Egypt, Libya, Ethiopia, Senegal, Nigeria, South Africa
Europe: Italy, Germany, Finland, Ukraine, Cyprus
America: The United States, Mexico, Brazil, Colombia, Venezuela, Argentina,
Asia: India, Philippines, Vietnam, Thailand, Malaysia, Singapore, Palestine



T8 Electrophoresis Finish Window Aluminum Profile Extrusions
