6063 Glue Injection Aluminium Window Frame Extrusions
6063 Glue Injection Aluminium Window Frame Extrusions
6063 Glue Injection Aluminium Window Frame Extrusions
6063 Glue Injection Aluminium Window Frame Extrusions
Specifications
Brand Name :
Huilv
Model Number :
HL-ZRT90C
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 000 Tons/Year
Delivery Time :
Within 5-15 working days
Packaging Details :
inner protection film stick on each profile, outter packed by the carton.
Material :
6063,6061,6005,6060 Alloy aluminum
opening pattern :
sliding window
From :
Anhui province, China
Temper :
T5
Surface Treatment :
powder coating
Colour :
customized is available
Energy saving :
glue injection thermal break
Size :
as per drawing
Application :
Construction, Industry, Engergy, Transportation etc.
Fabrication service :
Punching, drilling, welding, bending, CNC machinery service can be offered if needed
Description

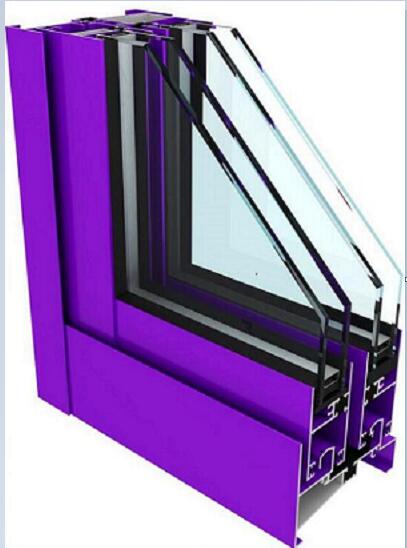

Sliding Window Thermal Break Aluminium Frame

Advantage of Extrusion Aluminium Extrusion:

1 Remarkable energy saving effect, energy saving can be 30-40%

2 excellent sound insulation performances can reduce noise 30-50Db.

3 superb anti-frosting and anti-fogging performance, the window can keep clean and bright.

Product Details:

Description Aluminium Profiles For Inward Outward Sliding Window
Aluminum profile With Thermal Barrier Strip
Material 6063,6061,6005,6060 , T5, T6
Glass Type Single, double, tempering, coating, low-e
Single Glass 5mm,6mm,8mm,10mm,12mm
Double Glass 6mm+12A+6mm, 5mm+14A+5mm, 5mm+15A+5mm, 5mm+18A+5mm, 5mm+27A+5mm (Glass can be made 5mm/6mm/8mm/10mm/12mm)
Brand Name Huilv
Business type Manufacturer
Place of Origin Xuancheng city, Anhui province, China
Warranty More than 5 years

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T3-T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Impurity Al
Unit Total
6063 (0.2-0.6)% <0.35% <0.1 <0.1 0.45-0.9 <0.1 <0.1 <0.1 <0.05 <0.15 all the rest
6061 0.4-0.8 0.7 0.15-0.4 <0.15 0.8-1.2 0.04-0.35 <0.25 <0.15 <0.05 <0.15 all the rest
6005 0.6-0.9 <0.35 <0.1 <0.1 0.4-0.9 0.1 <0.1 <0.1 <0.05 <0.15

all the rest
6060 0.3-0.6 0.35-0.6 0.1-0.3 <0.1 <0.1 <0.15 <0.05 <0.1 <0.05 <0.15

all the rest

T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).

T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).


6063 Glue Injection Aluminium Window Frame Extrusions
6063 Glue Injection Aluminium Window Frame Extrusions
6063 Glue Injection Aluminium Window Frame Extrusions

Production Line:

1. Extrusion Line

2. Wood Transfer Line

3. Powder Coating Line

4. Anodize Line

5. Polish Line

6063 Glue Injection Aluminium Window Frame Extrusions

Why Us:

1. We are a self-own factory, which specializes in producing Aluminum Alloy profile for windows and doors.

2. One-stop Service.
3. 24 hours online services.
4. .Covers an area of 100,000 square meters and owns more than 300 skilled employees..
5. 15 years' professional experience in research, manufacturing and marketing.
6. Design according to the customers' requirements.

Shipping port:
Shanghai/Nanjing/Wuhu Port

Type of shipping:
Shipment by sea; by road; by train; multi-transportation.

Payment:
30% down payment by T/T and rest beforoe shipment. Or L/C or we can discuss.

Shipping Term:
FOB, CIF or discussed.


Overseas Market:

Africa: Algeria, Egypt, Libya, Ethiopia, Senegal, Nigeria, South Africa
Europe: Italy, Germany, Finland, Ukraine, Cyprus
America: The United States, Mexico, Brazil, Colombia, Venezuela, Argentina,
Asia: India, Philippines, Vietnam, Thailand, Malaysia, Singapore, Palestine


6063 Glue Injection Aluminium Window Frame Extrusions
