Specifications
Brand Name :
Huilv
Model Number :
HL
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 000 Tons/Year
Delivery Time :
5-15 working days
Packaging Details :
inner protection film stick on each profile, outter a bundle packed by the carton or shrink paper.
Color options :
almost any color
Wall thickness :
≥0.8mm
General length :
less than 6m, or customized
Application :
windows and doors
OEM ODM :
acceptable or use our HUILV brand
MOQ :
3-5tons for each model
Surface treatment :
PVDF,electrophoresis,wood grain,powder coating,anodizing
Packing details :
inside : packed with plastic protective film to protect each profile, outside:packed with waterproof kraft paper
Hardness (HW) :
≥8
Description

15 years warranty anti fading anti peeling smooth no color difference powder coated aluminum profile

What is powder coated aluminum?

Powder coated aluminum is a beautiful and durable material for outdoor furniture. It is lightweight, corrosion resistant and very good looking. Powder coating is a polyester based coating that uses uniformly sized micro-beads of polyester, electrostatically charged to adhere to base materials.

Is powder coated Aluminium good?

Applying powder coating to properly pretreated aluminium surfaces will help protect them from the effects of corrosion. However, although this form of protection offers long-term durability, it is not entirely unbeatable to the effects of any elements.

Is powder coated Aluminium waterproof?

Powder coated provides a hardened layer that creates a waterproof and resistance to fading.

What is Anodizing?

Nearly a century old, anodising is a relatively straightforward electrochemical process used to increase the thickness of the natural oxide layer on the surface of aluminium.

What is wood grain transfer printing?

The wood grain transfer printing process is the inks penetrate into the powder coated layer at a high temperature, finally getting a decorated effect on the surface. Operations. 1) Cover the profile with wood grain paper or wood film, and make vacuum with the device of the transfer machine.

Why does the aluminum profile need surface treatment?

Aluminium is one of Earth’s most abundant metals known for its lightness, strength and resistance to corrosion. Untreated aluminium extrusions are perfectly adequate for many applications; however, there are many valid reasons to treat the surface of aluminium profiles. These include introducing colour, supplementing corrosion resistance; augmenting hardness; arresting wear-and-tear; and adding reflectivity.

Quick Details:

Material 6000 series, like 6063, 6061.
Temper T4, T5, T6
Thickness General profiles thickness: 0.8 - 3.0 mm;
Anodized protection thickness: 8 - 25 um;
Powder coating color thickness: 40 - 120 um.
Length 3m or 6m per piece. Customized request available
Shape square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available
Surface Treatment mill, anodized, powder coated, electrophoresis, wood grain, PVDF paint, polish, brushed, sand blasting
Color Metal silver, champagne, black, white, mirror, customized request available
Application windows and doors, curtain walls, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, housing, solar.
Deep Process CNC, drilling, milling, cutting, welding, bending, assembling
MOQ 500kgs for each item
Production Capacity 5000 tons monthly, 60000 tons annually.
Brand Name HUILV
Certificate and Standard 1) ISO9001-2008/ISO 9001:2008;
2) National GB5237.1-2017
Guarantee Surface color can be stable for 10~20 years indoor using.
Lead Time Die Developing and Sample testing: 12-18 days .
Mass Production: 20-30days.
FOB Port Shanghai / Wuhu/ Nanjing
Payment Terms T/T 30% for deposit, balance before delivery or against BL copy
Settlement Terms Charge by final actual weight.

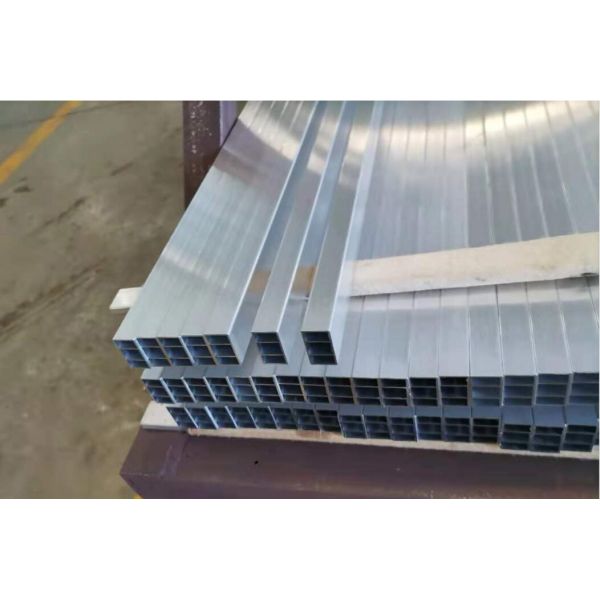

6063 Anti Peeling Powder Coated Aluminum Section Pretreated

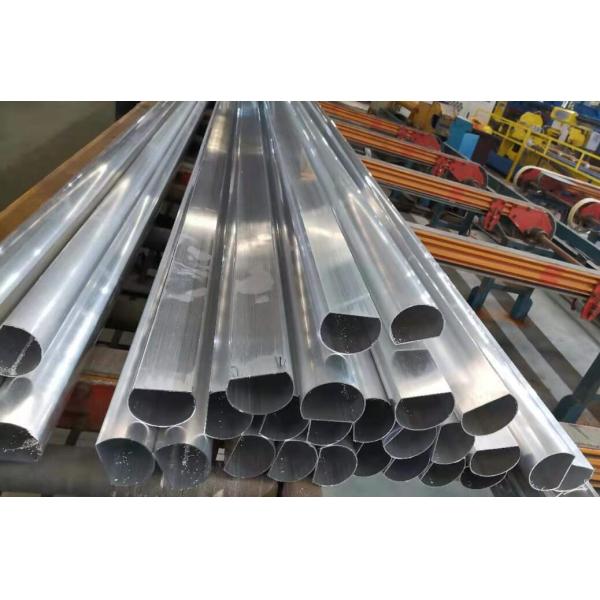

6063 Anti Peeling Powder Coated Aluminum Section Pretreated

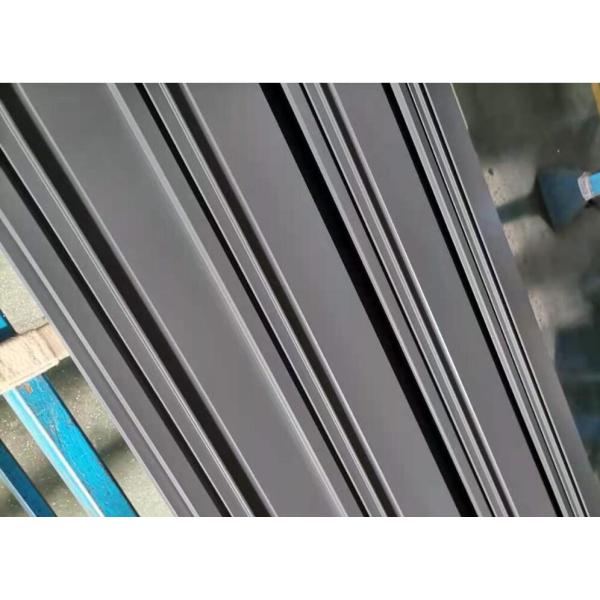

6063 Anti Peeling Powder Coated Aluminum Section Pretreated

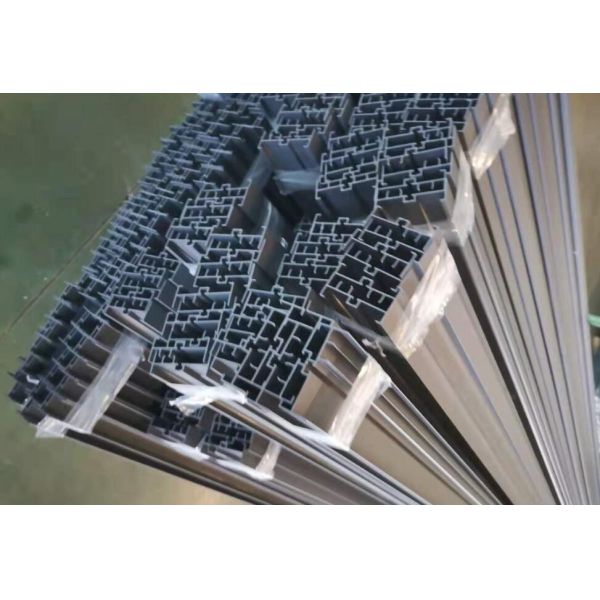

6063 Anti Peeling Powder Coated Aluminum Section Pretreated

EXHIBITIONS:

6063 Anti Peeling Powder Coated Aluminum Section Pretreated

F A Q :

1. Q: Are you a factory or trading company?

A: We are a factory.Now we runs 2 large facories, both are designing and producing Aluminum Profile.

2. Q: Where is your factory located? How can I visit there?

A: Our factory locates in Xuancheng, Southeast Anhui, China, it takes about half and two hours to Shanghai, and one hour to Nanjing and Hangzhou.Warmly welcome to visit us!

3. Q: Is your mould free?

A: We have self-designed mould, if you use our mould, its free.

Or we can open new mould based on your drawing, it is free till your quantity reach 5tons.

4. Q: How do you control the quality?

A: As a manufacture certificated by ISO9001,ISO14001, We do have very strict quality controlling system.All the defective products will not be out from factory.

5. Q:How about the delivery?

A:Our annual production capacity is 50,000tons. 20- 35days after sample confirmed and down payment.

6. Q: Can you offer free sample?

A: We can offer free sample but you should bear the freight.
