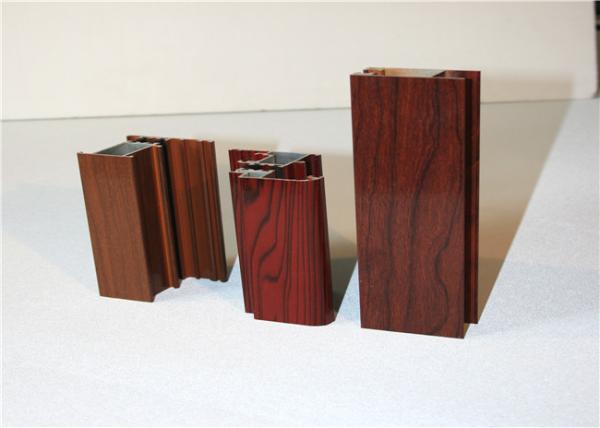

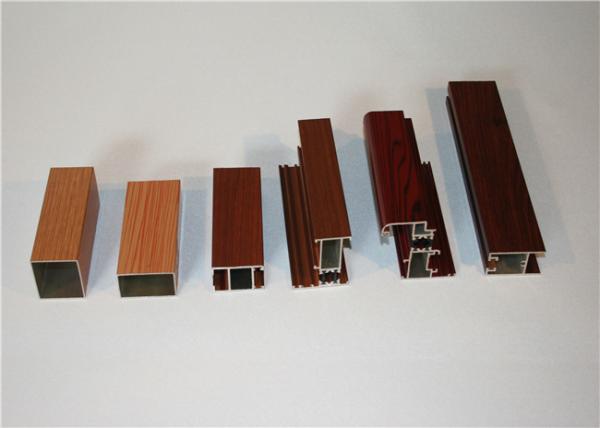

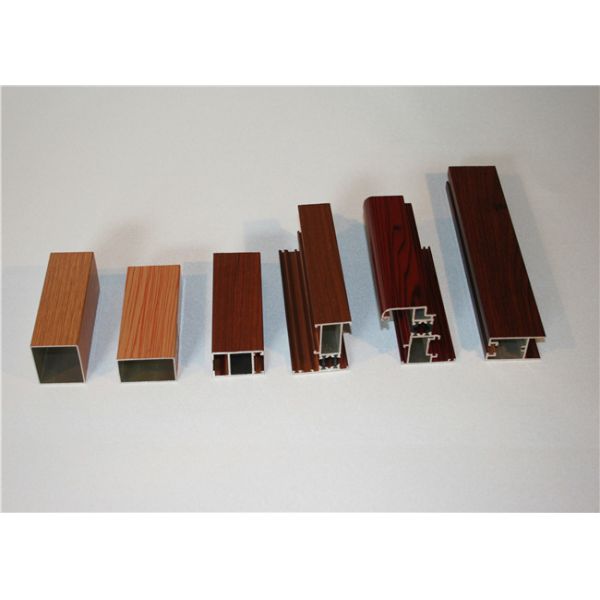

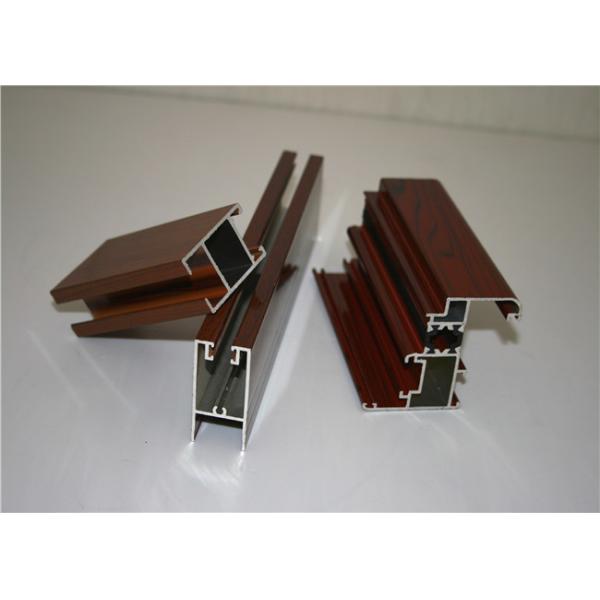

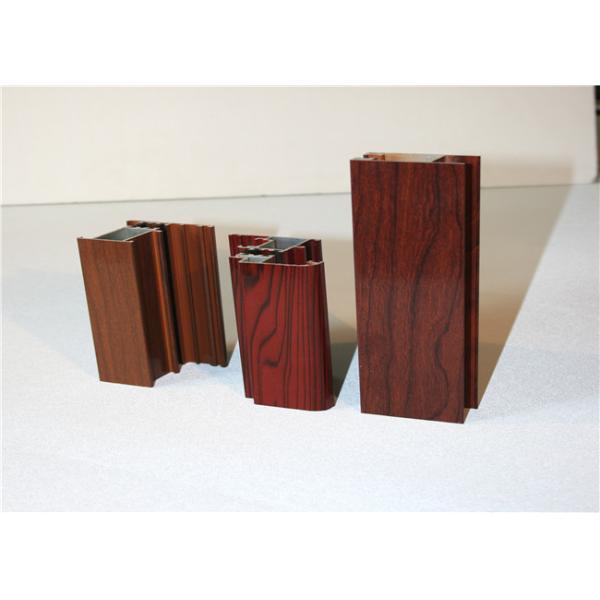

6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
6060 T5 3.0MM Wood Grain Finish On Aluminum Door Frame
Specifications
Brand Name :
Huilv
Model Number :
HL
Certification :
ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE
Place of Origin :
China
MOQ :
300Kg
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000Tons/Year
Delivery Time :
Within 5-15 working days
Packaging Details :
Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape
Name :
And Wood Color Windows Wooden Grain Transfer Aluminum Extrusion Profiles
Used for :
ALL CUSTOMIZED. Windows and doors, curtain wall, fence, standard shape ( tube, pipe, channel, angle, bar, T, C, U, etc. ), industrial ( heat sink, solar frame, conductor rail, car, cellphone, etc. ), kitchen cabinet, wardrobe, railing, furniture, office pa
Color :
Any wooden color as you need
Material :
Aluminum Alloy 6061 6060 6063 6005 T5 T6
Surface treatment :
Wood Grain Transfer
Thickness :
0.7MM-3.0MM
Length :
5.8M/6M
Production time :
15-25 days
Description

And Wood Color Windows Wooden Grain Transfer Aluminum Extrusion Profiles

Wood Grain Transfer Aluminum Extrusion Advantages:

Wood grain has strong adhesion to aluminum, non-toxic, odorless, and easy to clean. The product lines are clear and lifelike, the three-dimensional effect is strong, the appearance decoration effect is good, and the visual effect of returning to nature and returning to nature. The coating film on the surface of the sprayed aluminum profile is non-volatile, non-oxidized in the air and does not pollute the environment. The dirt deposited on the sprayed surface, once cleaned, can restore the reconstructed gloss and appearance.

Wood Grain Transfer Aluminum Extrusion Product Details:

Surface Treatment: mill finish,powder coating,anodize,polish,electrophoresis,wood transfer color
Hardness: Min HW9
Color: Specified by customer according to international RAL color brand
Alloy Temper: 6063/6061/6005/6005A T4,T5,T6
Film Thickness: 8-25um for anodize, 40-120um for powder coating
Thickness 0.7mm aboved
Mold making 10-15 days
time:Mold Cost: About USD300 each and refund once quantity up to 5 tons each
Packing: Plastic protective film+heat shrinking bag, or with pearl wool, as to client's require.
Delivery Time: 20 days for 3*40HQ
Payment: TT/LC
Standard: GB/T 5237

Wood Grain Transfer Aluminum Extrusion Products Materials

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5, T6

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
Unit Total
6063 0.2-0.6 <0.35 <0.1 <0.1 0.45-0.9 <0.1 <0.1 <0.1 <0.05 <0.15 Surplus
6061 0.4-0.8 0.7 0.15-0.4 <0.15 0.8-1.2 0.04-0.35 <0.25 <0.15 <0.05 <0.15 Surplus
6005 0.6-0.9 <0.35 <0.1 <0.1 0.4-0.9 0.1 <0.1 <0.1 <0.05 <0.15 Surplus
6060 0.3-0.6 0.35-0.6 0.1-0.3 <0.1 <0.1 <0.15 <0.05 <0.1 <0.05 <0.15 Surplus

Mechanical Properties

Alloy Temper Thickness T.S. Y.S ELOG. Hardness
σb (MPa) σ0.2 (MPa) δ% HV HW
6005 T5 ≥ 0.8 ≥260 ≥240 ≥10 ≥85 ≥15

6063

 T4 ≥ 0.8 ≥130 ≥65 ≥12 - -
T5 ≥ 0.8 ≥160 ≥110 ≥8 ≥58 ≥8
T6 ≥ 0.8 ≥205 ≥180 ≥8 ≥65 ≥10
6061 T4 ≥ 0.8 ≥180 ≥110 ≥16 ≥65 ≥10
T6 ≥ 0.8 ≥265 ≥245 ≥8 ≥85

≥15.5

Determination of gloss and luster

The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sunlight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.

Surface Treatment we could offer:

Mill Finish, Anodize,Powder Coating,Electrophoresis,Polish,Wood Color,Thermal Break

Shipment:

Standard loading quantity:

1*20GP:Max .length:5.85 meters Loaded quantity: 10 to 12 tons

1*40HQ:Max. length:12 meters Loaded quantity: 22-27 tons

Standard export port:

Shanghai/Nanjing/Wuhu Port

Type of shipping:

Shipment by sea; by road; by train; multi-transportation.

Production Line:

1 polish line

2 wood color line

3 powder coating line

4 anodize line

12 extrusion machine

Customized surface finishes are welcome:ome
1. Alloy and temper: 6061,6063 or other alloys, temper can be T4/T5/T6 etc
2.Excellent material for smooth and subtle edges, elegant appearance.
3.Thickness: above 0.8mm
4. Usage: millions of different use.
5. High corrosion resistance, high weather resistance and good wear resistance.

Overseas Market:

Africa:

 Algeria,Egypt,Libya,Ethiopia,Senegal,Nigeria,South Africa
Europe: Italy, Germany, Finland,United State,Ukraine,Cyprus
America: Mexico,Brasil,Colombia,Venezuela,Argentina
Asia: India,Philippines,Vietnam,Thailand,Malaysia,Singapore,Palestine
