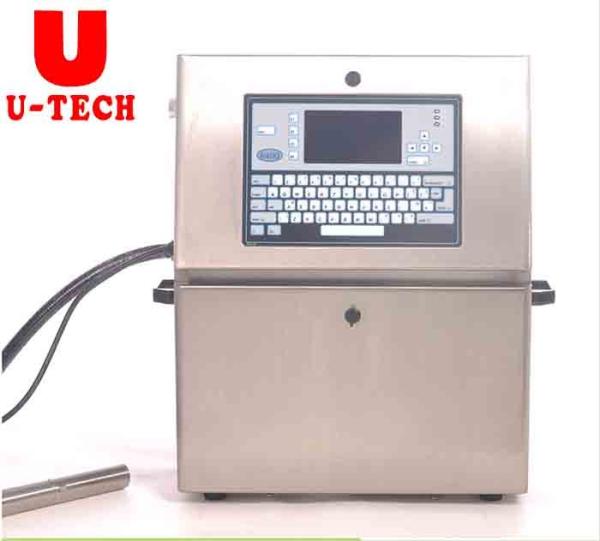

Industrial continuous printer online ink-jet coding wood printing machine
Industrial continuous printer online ink-jet coding wood printing machine
Specifications
Brand Name :
U TECH
Model Number :
UT-P1000
Certification :
CE SGS
Place of Origin :
China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets Per Month
Delivery Time :
30 work days
Packaging Details :
wooden case
Automatic Grade :
Automatic
Type :
Inkjet Printer
Ink :
Black,red,blue etc
Voltage :
110V-380V
Plate Type :
Screen Printer
Dimensions(L*W*H) :
248 * 338 * 550mm
Print speed :
70-120m/min
Warranty :
2 years
Description

Industrial continuous printer online ink-jet coding wood printing machine

Feature


1. Quick-dry ink used industrial non-contact small character inkjet printers


2. Print consistently high quality images even on structured and uneven surfaces


3. Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK


4. Easy to be integrated at any position of the production line


5. User friendly interface and most reliable ink system


6. 32 bit embedded CPU, large memory, and the 8.4'' TFT bright clear touch screen


7. Multitask system, printing and editing at the same time

Hydraulic system

1. Full automatic viscosity control and pressure control

2. Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump

3. Electronic control system completely separated design from hydraulic system

Print Head

1. Compatible design, maintenance friendly

2. Automatic ink stream on when start up and ink stream suck back when turn off

3. Nozzle size: 58 μm standard, 52 to 65 μm optional

4. Easily accessible and can be installed in any position

5. Distance from print head to print surface 1mm~30mm

Parameter

inkjet printer UT-P1000
Max. Print Speed 800 characters per second(5*7 dots)
Printable Font Height 1mm-20mm adjustable. Maximum can be widened 9 times
Dot Matrix figure & letter within 24 * 24, and user-defined within 32 * 32
Memory Capacity Up to 1000 massages
Printing line within 5 Lines
Printer Content Time, date, lot numbers, serial number etc.
Operate Interface Chinese,English,Russia
Print Material metal, plastic, glass, wood, tube, electrical wire, cable etc.
Ink color Black, blue, red etc
Ink Consumption 70 millions character per litre
Power AC220V /380V 50HZ 100AV
Printhead Throat Length 3m (customizable)
Communication USB and RS232 port
Environment temperature 5℃-45℃
Humidity Below 90%
Machine Dimension 248 * 338 * 550mm
Package Size 625 * 455 * 730mm
Gross Weight 50-55kgs
Display and Keyboard 8-inch full-color high-definition touch screen,and full-touch virtual keyboard
