Full automatic PET HDPE PP plastic bottle mouth neck Cutting deflashing machine
Full automatic PET HDPE PP plastic bottle mouth neck Cutting deflashing machine
Specifications
Brand Name :
U TECH
Model Number :
UT-2
Certification :
CE SGS
Place of Origin :
China
MOQ :
1 sets
Price :
discussiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
30-40 days
Packaging Details :
Wooden case
Warranty :
2 Years
Plastic processed :
PE,PET,PP,HDPE,PVC
Dimension(l*w*h) :
2.9x1.5x2.5
Voltage :
220V/380V
Name :
bottle neck cutting machine
Plc :
MITISUBISHI
Suitable bottle :
Water bottle/juice bottle/drink bottle/oil bottle
Description

Automatic PET HDPE PP plastic bottle mouth neck Cutting deflashing machine

Detailed Product Description

Nowadays, the cutting industry mainly uses manually extrusion cutting style, this cutting style needs operator to operate the machine, speed is limited; the qualified rate is different because of the different operator skills. Due the extrusion on the container mouth, the force is not even and cannot guarantee the cutting precision. Extrusion Cutting also causes many flakes, it wastes material.

The cutting machine is to adopt new technologies of Europe, Automatic cutting wide mouth plastic products bottles. Incision smooth,low-cost, High-yield advantages.Technical parameters are as follows.

1. Basic specification:φ10-φ160 mm ( we can depend on the customers bottles demanding).

2. Size: ( length * width *height) 550*400*1320 (mm)

3. Weight: 150Kg

4. Power:(KW) 0.55 Three Phase induction motors (including reducer).

5. Pulley speed: 120(r/min)

6. Incision knife: high-speed carbide just to strengthen handling, cut the width of 40mm, adjustable, flexible.

7. It is able to cope with the main machine into the plastic bottles, cutting plastic bottles and meanwhile bottles will separate automaticly from the edge scrap of bottles.

8. Conveyor belt without nodes, adjustable degree of tension, high stability of the bottles is falling back.

9. Enter Plastic bottles height (mm): 122mm (Accordig to the production of highly specific needs, adjustable)

10 E.g : φ70 Milk bottles This machine can finish 360pcs/min

Model UT-1 UT-2 UT-3 UT-4 UT-5
Cutting speed(BPH) 1000-1200 2000-2400 3000-3600 4000-4800 5000-6000
Cutting platform height 1000mm(100mm/±100mm adjustable)
Cutting motor Delta servo motor
Conveyor length 2000mm*2 groups
Cutting container diameter 70-300mm
Low pressure air capacity 0.1m³/min 8 bar
Air Cylinder Airtac
Conveyor Motor 120W*z, delta speed motor
Control system Mitsubishi PLC control system
Total 0.5KW
Dimension 5000*1700*600mm
Weight 450kg

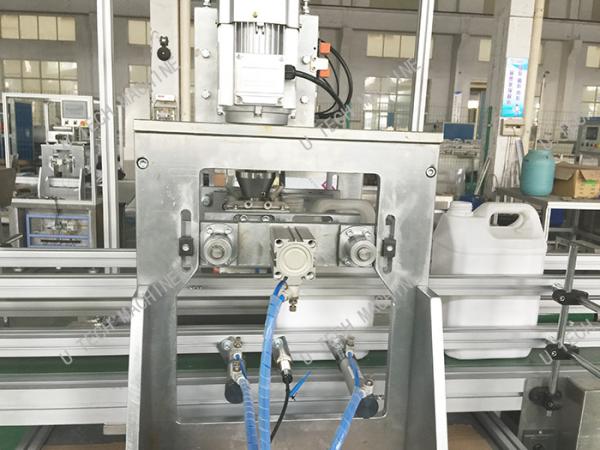

Main Pictures:

Full automatic PET HDPE PP plastic bottle mouth neck Cutting deflashing machine
