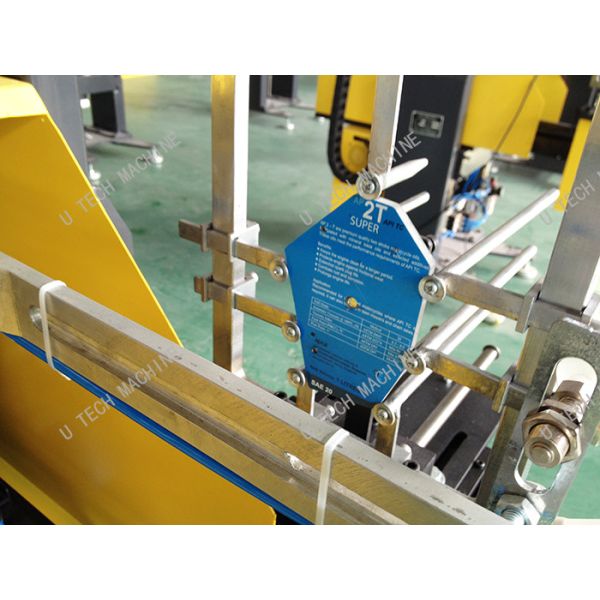

Fully Automatic IML In Mould Labeling Machine For Blowing Machine Electric
Fully Automatic IML In Mould Labeling Machine For Blowing Machine Electric
Specifications
Brand Name :
U TECH
Model Number :
BST-IML
Certification :
CE SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
20 work days
Packaging Details :
polywood case for Hot Sell In mold labeling machine Double Stations working in mold labelling machine
Type :
Labeling Machine, Automatic Labeling Machine
Driven Type :
Electric
Condition :
New
Automatic Grade :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
Packaging Type :
Bottles
Packaging Material :
Wood
Export Markets :
Global
Power :
0.4kw
Voltage :
220V 50-60Hz
Weight :
450KG
Air pressure :
0.4~0.8MPa
Description

Fully automatic IML in mold label machine for blowing machine

Introduction

IML – in-mold labeling (IML) is a pre-decorating technique used for blow molded bottles as well as injection molded and thermoformed containers or other plastic objects.

In-mold labeling (IML) is very different from other labeling techniques because in-mold labels (IML) are ejected into the mold before the molds are closed; they are embedded into the wall of the container during the molding process.

IML – in-mold labeling (IML) film is a layer of paper or plastic that is used the in-mold labeling process. The in-mold labeling IML film is placed inside the mold as the container itself is being formed.

Features

There are numerous advantages associated with in-mold decorating and in-mold labels. This type of permanent graphics technology provides increased design flexibility and productivity over other methods. This includes the use of multiple colors, effects and textures in a single operation, long-lasting and durable graphics, and overall labeling and decorating cost reductions.

In-mold decorating, which provides enhanced graphics in plastic, provides complete labeling and decorating within the complete plastic injection molded process. This means that secondary operations are no longer required, which eliminates post-molding labeling, decorating labor and equipment costs.

Applications

In-mold labels and decorating plastic is used for a wide range of industrial applications, some of which include:

  • Medical & Pharmaceutical products
  • Electronic devices
  • Telecommunication equipment
  • Computer parts
  • Appliance panels
  • Automotive parts
  • POP display components
  • And many more

Parameter

Description

Automatic labeling machine machine

Surface NO.

2 surface

Main Specifications

HIM--special PC for IML(American INTEL chipset)

servo Motor --Japan SINO(or Taiwan DongYuan)

Ball screw and guide rail--ABBA

High-precision vacuum generator--Germany FESTO

Air valves--TAIWAN Airtac

Size

1420×860×1560(mm)

Weight

450kg

Power

400W

Air pressure

0.4~0.8MPa

Time of labeling

1.9~5s

Precision of labeling

+-0.15mm

Size of container being applied to

0.1L~10L

Lead Time

15-20days

Warranty Period

2 year

Payment Terms

30% T/T down payment, 70% T/T paid off after samples approval before mould delivery

Price Lalid Time

30 days

Remarks

When special product , please inform us in advance.

Drawing

Fully Automatic IML In Mould Labeling Machine For Blowing Machine Electric
