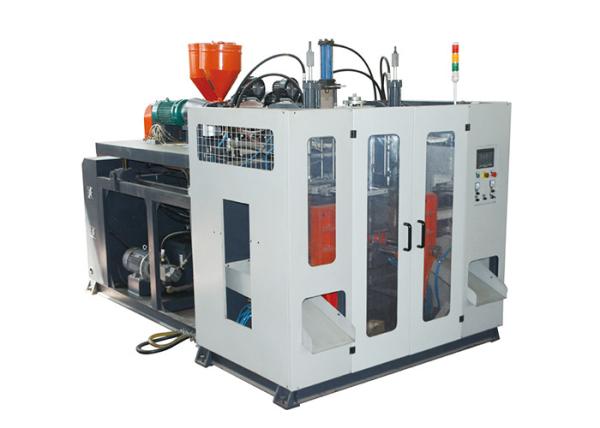

5L Ocean Ball Jerrycan Plastic Blow Molding Machine / Pp Blow Moulding Machine
5L Ocean Ball Jerrycan Plastic Blow Molding Machine / Pp Blow Moulding Machine
5L Ocean Ball Jerrycan Plastic Blow Molding Machine / Pp Blow Moulding Machine
5L Ocean Ball Jerrycan Plastic Blow Molding Machine / Pp Blow Moulding Machine
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Condition :
New
Material :
Stainless Steel
Target Material :
LDPE/HDPE/PP/PVC/PETG
Automatic :
Yes
Warranty :
2 Years
Machine Size :
3.8x2.2x2.4 m
Cooling Water Needed :
4.5 m3/H
Max Product Volume :
5L
Total Power :
52KW
Description

Automatic 5L ocean ball jerrycan plastic blow moulding machine


Introduction

BST-5 is double station blow molding machine, with 70mm screw diameter, which is suitable for 500ml-5liters Detergent Bottle, Liquid Soap Bottle, Washing Bottle production. with single, twin, triple, and four die head for option. capacity from 200-1000pcs per hour for option.

Our blow molding machine is mainly used for making water tank capacity from 1L-1000L ( 2 Layers, 3 Layers, 4 Layers, 5 Layers)
Production range also includes Road barrier, Pallet, IBC tank, Double Ring tank.

Feature

Die head: Special steel and centre feed extrusion die head;

Extruder unit: adopt automatic temperature control unit of import,the screw united by frequency motor,hard tooth surface gear box to achieve stepless speed regulation;

Clampling device: Across the basement type double linear guide and move mould strengthen
rigidity. Template is three bar with center clamping system

Hydraulic system: whole system adopt imported components, proportional control flow, Fast
response, more stable, power consumption without loss;

Electric controlling system: it adopts Japan programmable controller, touch screen,the
characteristic of it has direct manipulation and large information on board.

Parameter

Max Product Volume

5 L

Target Material

LDPE/HDPE/PP/PVC/PETG

Machine Size

3.8x2.2x2.4 m

Machine Weight

5.5 Tons

Voltage Suitable

Customer Specified

Screw Diameter

70 mm

L/D Ratio

24:1

Barrel Heating Power

14.2 KW

Extrusion Motor Power

22 KW

Plasticizing Capacity

90 KG

Platen Size

320x390 mm

Opening Stroke

150~500 mm

Max Mould Size

350x390 mm

Head No.

1

Central Distance

160 mm

Heating Zone No.

2+1

Head Heating Power

5.7 KW

Total Power

52 KW

Average Energy Consumption

31.5 KW

Compressed Air Needed

0.6 Mpa / 1.0 m3

Cooling Water Needed

4.5 m3/H

Loading Reference

20’GP
