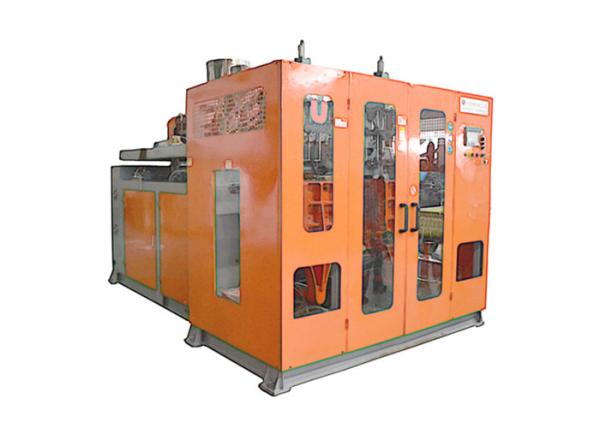

Extrusion Blow Moulding Machine For 1-5 L Laundry Detergent Bottle

Introduction

Source used extrusion blow moulding machines including single and multi station extrusion blow molding machines. Large extrusion blow molders on sales to produce drums, blow moulding of intermediate transport containers and other large blow moulded parts.

We complete each of our builds with quality as our top priority. We take pride in the fact that we build quality into our manufacturing processes. We use real-time online process monitoring and controls in addition to our functional, visual and dimensional quality inspections. We use closed-loop feedback controls to minimize long and short term variability in the process to yield tighter tolerance extrusions. Our ISO certified quality system ensures that you have the best quality controls and product repeatability & performance.
1. The maximum blow volume is 5L, PE, PP , TPU, etc. can be used.
2. Servo motor system for option, could save energy consumption 20%.
3. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
4. It is convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
5. Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
6. Clamping mold is achieved with scissor toggle mechanism, mold carriage is with high-precision ball linear guide, every part of template bears the similar clamping force,
7. Extruder platform can be lifted, easy to adjust the parison length
8. Design is based at CE safety standard, concerning about user safety;
9. Inverter is from France SCHNEIDER, or Taiwan DELTA, adjust the screw speed, saving energy ;
10. automatic lubrication system, automatic alarm function, more concerned about the user;
11. Equipped with high temperature alarm function.

Parameter
