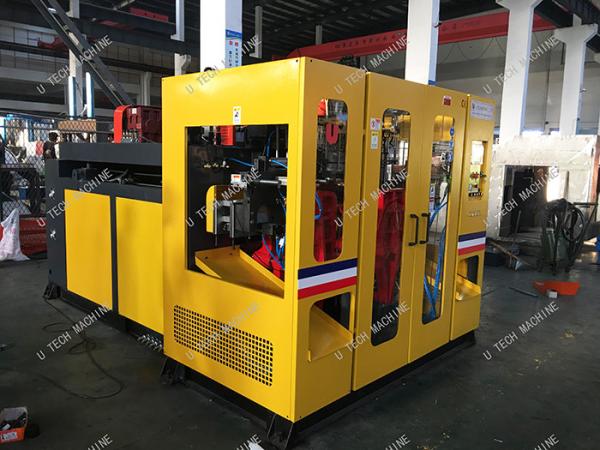

Can Extruder Shampoo Bottle Pe Blow Molding Machine CE SGS ISO Certify
Can Extruder Shampoo Bottle Pe Blow Molding Machine CE SGS ISO Certify
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Condition :
New
Material :
Stainless Steel
Target Material :
LDPE/HDPE/PP/PVC/PETG
Automatic :
Yes
Warranty :
2 Years
Machine Size :
3.8x2.2x2.4 m
Compressed Air Needed :
0.6 Mpa / 1.0 m3
Cooling Water Needed :
4.5 m3/H
Description

5 l Plastic can extruder shampoo bottle blow moulding machine


Introduction

BST series double station blow molding machine is U TECH company's original design,it's hydraulic.
The perfomance is well and running stable,it's easy to operate.The sales is hundreds and it's a mature design in company.This machine is suitbale from 5ml to 5L,suitble for drug bottle,washing bottle,oil bottle,chemical bottle,plastic toy,beverage bottle,drill box ect.
It adopts optimized hydraulic oil loop design,and it gains a stable,fast,power saving property.

Feature

Die head: Special steel and centre feed extrusion die head;

Extruder unit: adopt automatic temperature control unit of import,the screw united by frequency motor,hard tooth surface gear box to achieve stepless speed regulation;

Clampling device: Across the basement type double linear guide and move mould strengthen
rigidity. Template is three bar with center clamping system

Hydraulic system: whole system adopt imported components, proportional control flow, Fast
response, more stable, power consumption without loss;

Electric controlling system: it adopts Japan programmable controller, touch screen,the
characteristic of it has direct manipulation and large information on board.


Parameter

Max Product Volume

5 L

Target Material

LDPE/HDPE/PP/PVC/PETG

Machine Size

3.8x2.2x2.4 m

Machine Weight

5.5 Tons

Voltage Suitable

Customer Specified

Screw Diameter

70 mm

L/D Ratio

24:1

Barrel Heating Power

14.2 KW

Extrusion Motor Power

22 KW

Plasticizing Capacity

90 KG

Platen Size

320x390 mm

Opening Stroke

150~500 mm

Max Mould Size

350x390 mm

Head No.

1

Central Distance

160 mm

Heating Zone No.

2+1

Head Heating Power

5.7 KW

Total Power

52 KW

Average Energy Consumption

31.5 KW

Compressed Air Needed

0.6 Mpa / 1.0 m3

Cooling Water Needed

4.5 m3/H

Loading Reference

20’GP
