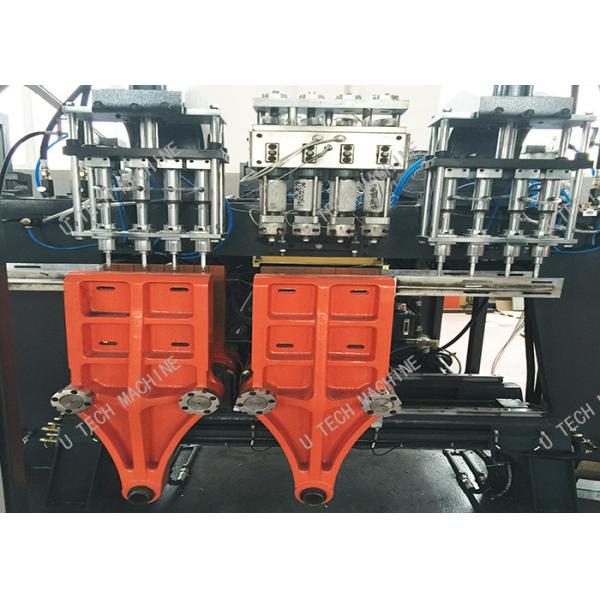

Medicine Bottle Plastic Blow Molding Machine / Extrusion Moulding Machine
Medicine Bottle Plastic Blow Molding Machine / Extrusion Moulding Machine
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Condition :
New
Material :
Stainless Steel
Automatic :
Yes
Warranty :
2 Years
Max. Product Volume :
5L
Weight :
4.5T
Speed Control Method :
PLC
Dimension :
1960x1180x1960mm
Applicable Raw Material :
HDPE/LDPE/PP
Force of Closing Mold :
60KN
Description

Plastic HDPE extrusion blow molding machine 5L for medicine bottle

Introduction

Extrusion blow molding is one of the most used methods for forming packaging containers.
Extrusion blow molding is a process in which a thermoplastic raw material is plasticized by an extruder and then passed through a specific die to obtain a tubular parison in a hot melt state. When the tubular thermoplastic parison still in a softened state reaches a predetermined length After entering the mold, the mold is closed, and then the compressed gas is introduced, and the blank is deformed along the cavity by the pressure of the gas, thereby blowing into a hollow product having a short neck opening.

1. The screw adopts high potency melt to make sure the material well mixed.

2. Adopt frequency control of motor system to reduce the power consumption.

3. Adopt horizontal movement frame to improve stability and speed.

4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.

5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.

6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.

7.Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.

8. The precise time control system assured good quality, suitable weight and reduces production cycle.

9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.

10. Multi-function bottom blowing type for shaped products.

11. The mechanical arm can take out the product automatically.

Parameter

SPECIFICATIONS FOR 5 L Blow Molding Machine


Product Range

Max. Product Volume

5 L

Product Max. Dia.

18 CM

Thickness of Mould

150-220 mm

Width of Mould Board

303 mm

Distance of Mould Board

230 mm

Production Speed

200-300 PCS/HR

Applicable Raw Material

HDPE/LDPE/PP

Distance of Mold

160-500 mm

Force of Closing Mold

60 KN

Machine Parameters

Screw Dia.

75, 80, 90 mm

Screw Rod Length/Dia. Ratio

25:1

Speed Control Method

PLC

Energy Consumption

Heating Power

15 KW

Hydraulic Pump Power

4.5 KW

Extruder Motor Power

18.5 KW

Air Consumption

0.6 m3/Min.

Machine Dimension and

weight

Dimension

1960x1180x1960mm

Weight

4.5 Ton
