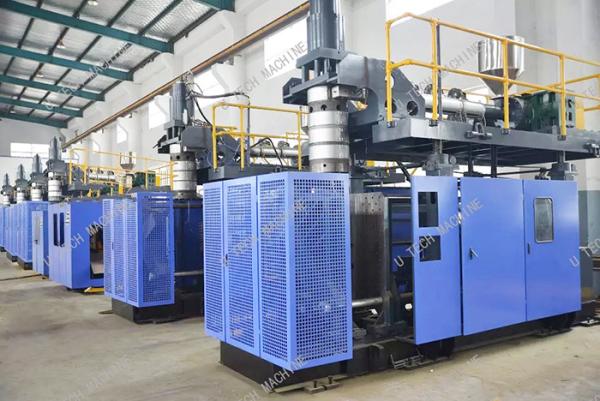

Multi Layers Extrusion Blow Molding Machine For PE PP PS Electronic Control
Multi Layers Extrusion Blow Molding Machine For PE PP PS Electronic Control
Specifications
Brand Name :
U TECH
Model Number :
BST-20
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
PLC :
MITSUBISHI
Control System :
PLC+touch Screen
Warranty :
2 Years
Operation screen :
SIMENS
Screw Diameter :
80mm
Average Power Consumption :
37KW
Clamping Force :
180kn
Plasticizing Capacity :
110kg/h
Description

20 Litre Plastic Jerry Can Extrusion Blow Molding Making Machine

Introduction

Jerry Can and Plastic Containers Making Machine BST-20 is single station blow moulding machine for 20L as maximum, specially used for 10~20L stackable jerry cans and containers. With single head for 10-20L jerry cans, with double head for 3~5L jerry cans. SRB80S is popular due to its wide products range, supporting on-line scraps auto-deflashing, also suitable for small sized abnormal shaped hollow products, high quality and price rate, stable working performance, easy operation and maintenance.

Feature

1. Reasonable structure design and solid frame manufacturing to insure running stability.

2. Good head material runner deisgn and precision metal process for changing color easily.

3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.

4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.

5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.

Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

80

Plasticizing Capacity

Kg/hour

110

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

250

Double Head Central Distance

mm

250

Triple Head Central Distance

mm

160

Four Head Central Distance

mm

120

Clamping Unit

Clamping Force

KN

180

Platen Size

mm

600x630

Opening Distance

mm

450~950

Moving Distance

mm

720

Max Mould Size

mm

650x600

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

11

Machine Total Power

KW

75

Average Power Consumption

KW

37
