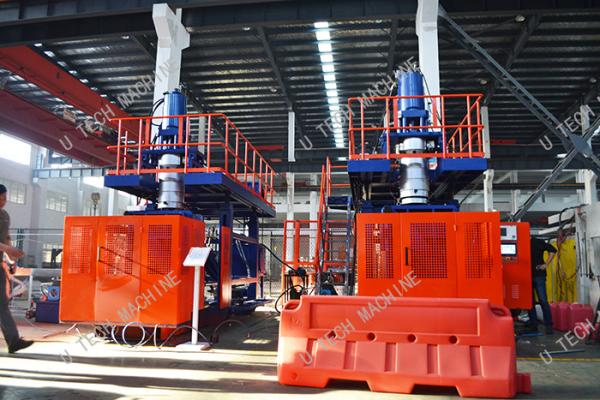

20L Tank Roadblock HDPE Extrusion Blow Moulding Machine BST Systems Support
20L Tank Roadblock HDPE Extrusion Blow Moulding Machine BST Systems Support
20L Tank Roadblock HDPE Extrusion Blow Moulding Machine BST Systems Support
20L Tank Roadblock HDPE Extrusion Blow Moulding Machine BST Systems Support
Specifications
Brand Name :
U TECH
Model Number :
BST-20
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
PLC :
MITSUBISHI
Control System :
PLC+touch Screen
Warranty :
2 Years
Screw Diameter :
75mm
Plasticizing Capacity :
90kg/h
Max Mould Size :
600x500mm
Average Power Consumption :
37kw
Machine Total Power :
72kw
Description

BST Systems 20L tank roadblock HDPE Extrusion Blow Moulding Machine
Introduction

Extrusion blow molding is a process for directly manufacturing hollow plastic bottles/containers by using the machines extruder, die head, clamp unit (press) and mold. The bottles/containers manufactured by the extrusion blow molding process have the following features:

High impact resistance

Flexible part design

Easily controlled wall thickness

Environmental resistance

Durability at light weights

Ideal for decoration (screen print and label)



This type of blow molding machine can produce plastic oildrums, containers,Jerry cans,barrels,plastic tools,auto parts,etc.

1. Die head: Center-feed die head

2. Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.

3. Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well

4. Blowing device: with upper blowing type

5. Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.

6. Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.


Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

75

Plasticizing Capacity

Kg/hour

90

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Triple Head Central Distance

mm

160

Four Head Central Distance

mm

120

Clamping Unit

Clamping Force

KN

180

Platen Size

mm

500x550

Opening Distance

mm

250~750

Moving Distance

mm

560

Max Mould Size

mm

600x500

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

11

Machine Total Power

KW

72

Average Power Consumption

KW

37
