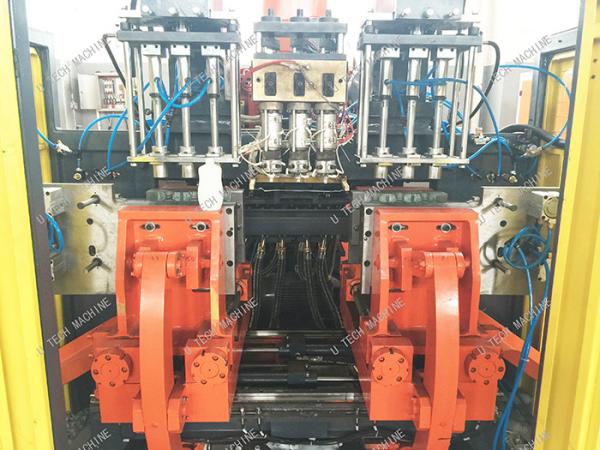

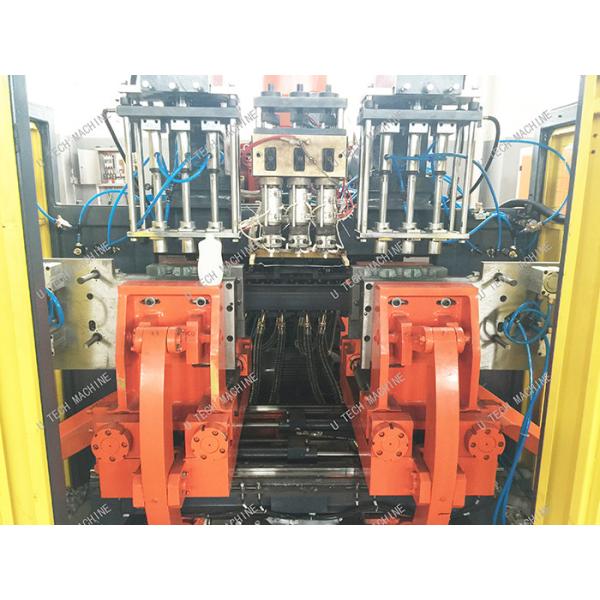

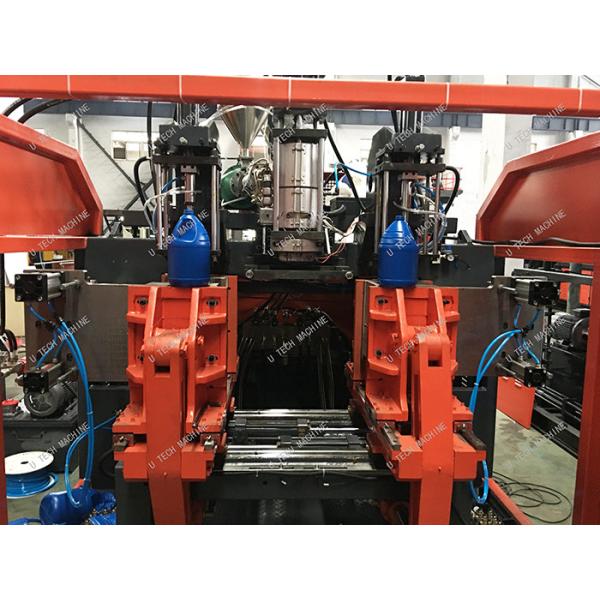

Small Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle Production
Small Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle Production
Small Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle Production
Small Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle Production
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
Control System :
PLC+touch Screen
Warranty :
2 Years
Screw Diameter :
80mm
Average Power Consumption :
42KW
Pump Motor Power :
15KW
Extrusion Motor Power :
30KW
Machine Total Power :
72KW
Description

Blow molding machines for the production of 5l HDPE 5 liters of canister engine oil bottle blow moulding machine price


Introduction


This machine is mainly used to produce IBC barrel, plastic tray, and it adopts the international advanced computer control system and wall-thickness control system that guarantee the evenness of the wall thickness and the elegant appearance of the products to meet clients' needs.

1. Extruding system :

Various screw design for high efficiency of mixing and elasticizing the quality.

2. Diehead system :

1 layer single diehead, 2 layer double diehead, 2 layer diehead with view stripe by centre feeding of out layer. Trible diehead.

3. Hydraulic pattern and pneumatic system :

We adopt the oil circulation system from America Vickers or Japan YUKEN. The selecting of oil pump, circulation board and the unique filter system, makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.

4. Electrical controlling system :

On the basis of our rich experience in extrusion field, we all adopt high quality pneumatic accessories, and in accordance with the requirement of each extrusion blow products, we design different blowing article, air exhausting, air dryness and so on blow system.


Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

80

Plasticizing Capacity

Kg/hour

110

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Four Head Central Distance

mm

120

Six Head Central Distance

mm

85

Clamping Unit

Clamping Force

KN

110

Platen Size

mm

580x420

Opening Distance

mm

150~450

Moving Distance

mm

720

Max Mould Size

mm

630x385

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

15

Machine Total Power

KW

72

Average Power Consumption

KW

42


Small Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle ProductionSmall Plastic Blow Molding Machine 5 Liters Canister Engine Oil Bottle Production
