Pp PE Water Tank Blow Moulding Machine With Liquid Level Line 12 Liter

Introduction

The screw adopt high potency melt to make sure the material well mixed for different material such as PP , PE , PS , PAN , PA , PPE , PPO , ABS , POM , TRV

Adopt frequency control of motor system to reduce the power consumption

Choose single and double station according to your output easily

Adopt horizontal movement frame to improve stability and speed

The oil cylinder is inthe center of the moldboard,uniform stess for quality products and increase life span.

Three guild rod controller the mold open and clamp,to enhance the steadily and high efficiency.

The extrusion frame use head device,to influence the melt matetial avoid joint with the mold.

The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.

Adopt parison control when necessary for thickness

The professional oil system to reduce strike and noise

Use auto circular cutting system and automatic Conveyor belt for fully automatic produce when necessary

According customer's request,labeling machine is assorted.

Feature

1. Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.

2. Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.

3. Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.

4. Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable.

5. Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster..

6. Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth.

Components list

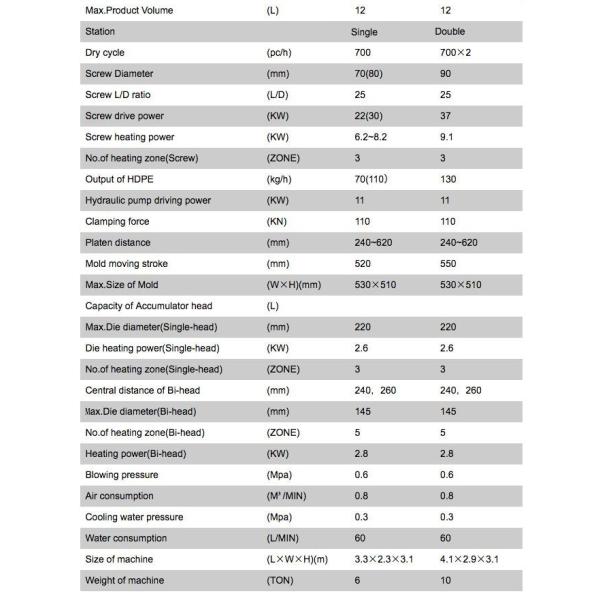

Parameter
