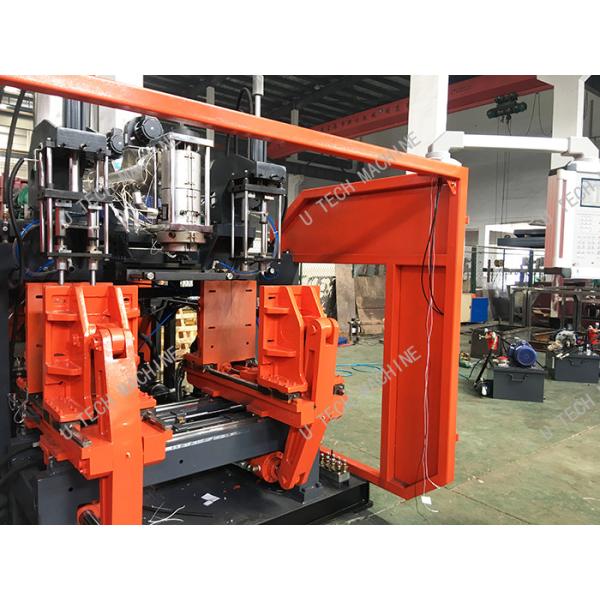

Jerry Cans HDPE Blow Molding Machine 720mm Moving Distance 630x385mm
Jerry Cans HDPE Blow Molding Machine 720mm Moving Distance 630x385mm
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
Control System :
PLC+touch Screen
Warranty :
2 Years
Screw Diameter :
80mm
Average Power Consumption :
42KW
Moving Distance :
720mm
Max Mould Size :
630x385mm
Description

5 Litre Plastic Machine HDPE Blow Molding Jerrycan Blow Moulding Making Machine


Introduction

Auto Blow Molding Machine is mainly used for making various large-scale chemical used buckets, hollow tray, playing desktop, and multi-layer composite IBC buckets with capacity from 1-1000L. Also producing Tool Case Chair, auto parts, large chemical bucket; PC 5 gallon and 3 gallon drinking water bucket, lampshade. Lubrication oil barrels, both for industry and civil bottles in bulk. Beside, Injection Blow Molding Machine is mainly used for producing injection blow medicine bottle, cosmetic bottle, reagent bottle, eyedrops bottle.

Advantage

High-Speed and Precise Quality, Suitable For Processing PP, PE, PC, PS Materials.

Fully Computerized Design With Self-Diagnostics System, Display Erroneous Message On Touch Screen, Easy For Trouble-Shooting!

Quickly Molds Changing System, Saving Cost and Productive Cycle Time.

All Function Control-On-Board Design, Easy for Operator Changing Data and Modifying Setting Directly On Touch Screen.

The Feature Of Injection Blow Molding Machine, Not Only Bottle Surface Shining, But Also Bottle Body Seamless, Excellent For Production Smaller Bottle.

Hydraulic Is Close Loop System, Controlled By Proportion Pressure and Flow Rate Precisely.

Mold Seat Is Turret-Typed Design, Adopt Angular Index Device To Ensure Accurate Orientation.


Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

80

Plasticizing Capacity

Kg/hour

110

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Four Head Central Distance

mm

120

Six Head Central Distance

mm

85

Clamping Unit

Clamping Force

KN

110

Platen Size

mm

580x420

Opening Distance

mm

150~450

Moving Distance

mm

720

Max Mould Size

mm

630x385

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

15

Machine Total Power

KW

72

Average Power Consumption

KW

42
