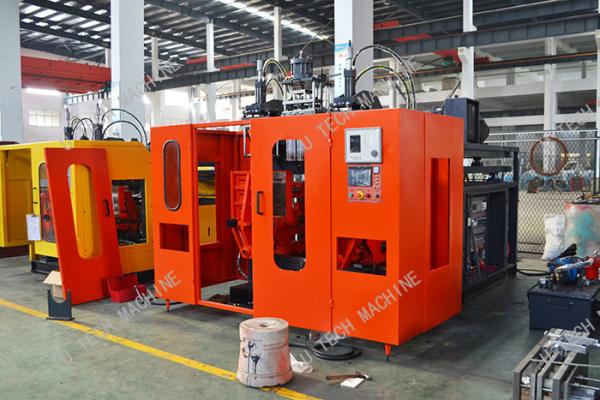

Single Station Blow Molding Machine 5 Liters HDPE Bottle Jerrycan Making
Single Station Blow Molding Machine 5 Liters HDPE Bottle Jerrycan Making
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
Control System :
PLC+touch Screen
Warranty :
2 Years
Screw Diameter :
80mm
Average Power Consumption :
42KW
Plasticizing Capacity :
110kg/h
Description

5 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine HDPE Bottle Jerrycan Blow Molding Machine

Introduction

Horizontally carriage movement combined with toggle mold clamping for maximum stability. The series is excellent for producing small and mid sized containers.


Available to equip with an auto deflashing system or neck trimmer device to achieve fully automatic and highly efficient production.


Colorful LCD touch screen with human-machine interface control system. It provides powerful and customized functions, maximum operational convenience and user-friendly operation.

Feature

1. Reasonable structure design and solid frame manufacturing to insure running stability.

2. Good head material runner deisgn and precision metal process for changing color easily.

3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.

4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.

5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.

Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

80

Plasticizing Capacity

Kg/hour

110

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Four Head Central Distance

mm

120

Six Head Central Distance

mm

85

Clamping Unit

Clamping Force

KN

110

Platen Size

mm

580x420

Opening Distance

mm

150~450

Moving Distance

mm

720

Max Mould Size

mm

630x385

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

15

Machine Total Power

KW

72

Average Power Consumption

KW

42

Single Station Blow Molding Machine 5 Liters HDPE Bottle Jerrycan Making
