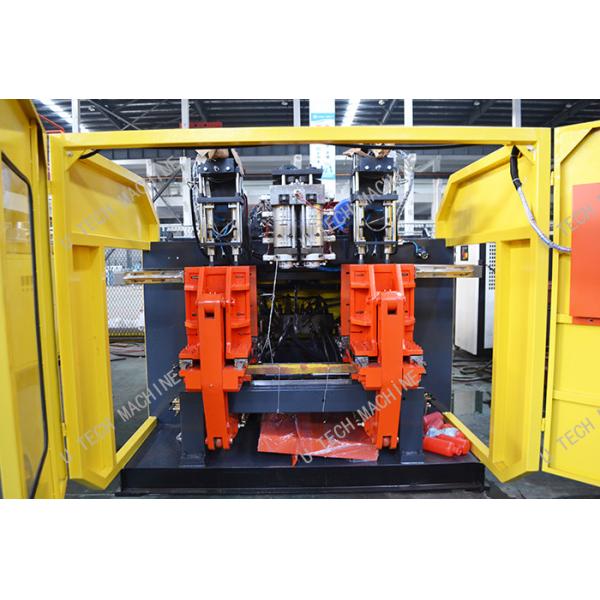

PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production
PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production
Specifications
Brand Name :
U TECH
Model Number :
BST-5
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
Control System :
PLC+touch Screen
Warranty :
2 Years
Screw Diameter :
80mm
Average Power Consumption :
42KW
Double Head Central Distance :
230mm
Clamping Force :
110KN
Plasticizing Capacity :
110kg/h
Max Mould Size :
630x385mm
Description

HDPE Bottles Jerry Can Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Making Machine

Introduction

This model adopts fixed mould open-closing system and accumulator die.This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box, oil box, air-condition pipe, aoto tail), toys (wheel, hollow autobike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 5L hollow plastic product.

Specifications:

  • Built with safety devices to provide maximum protection for the machine operator
  • High plasticizing capacity extrusion screw is designed to handle material variations
  • Plasticizing screw and barrel are precision machined from special nitrogen treated steel
  • Water cooling technology controls feed zone temperature
  • Chiller circulated hydraulically controlled blow-pin
  • Pneumatically operated automatic deflashing unit.
  • When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application



Parameter

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

80

Plasticizing Capacity

Kg/hour

110

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

230

Four Head Central Distance

mm

120

Six Head Central Distance

mm

85

Clamping Unit

Clamping Force

KN

110

Platen Size

mm

580x420

Opening Distance

mm

150~450

Moving Distance

mm

720

Max Mould Size

mm

630x385

Driving System

Extrusion Motor Power

KW

30

Pump Motor Power

KW

15

Machine Total Power

KW

72

Average Power Consumption

KW

42


PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production
