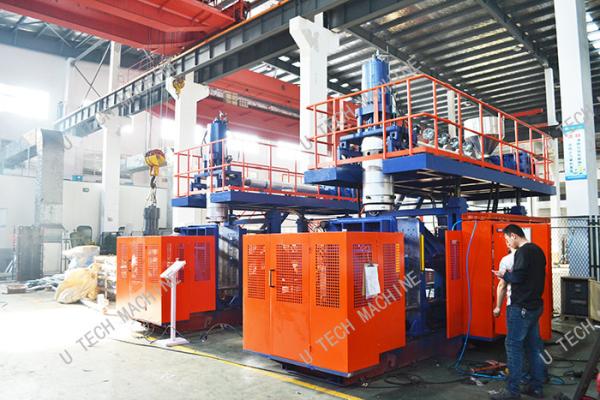

Fully Automatic HDPE Blow Molding Machine / Plastic Blow Moulding Machine
Fully Automatic HDPE Blow Molding Machine / Plastic Blow Moulding Machine
Specifications
Brand Name :
U TECH
Model Number :
BST-10
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Discussible Price
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for Automatic 5L Jerrycan Double Station HDPE Extrusion Blow Molding Machine Price
Material :
Stainless Steel
PLC :
SIMENS(Germany)
Warranty :
2 YEAR
Plastic processed :
PE,PP,HDPE
Blow moulding type :
Extrusion Blow Moulding
Voltage :
220V/380V
Clamping Force :
180kn
Average Power Consumption :
58kw
Max Mould Size :
550x450
Description

Prices Of New Style Automatic Blowing Machine For PP PE Plastic Bottles

Introduction

This series machine is mainly used to produce different kinds of engine oil pot, laundry detergent pot, cleanser essence pot, etc. and it can be converted to one die head or two heads as required.

1. The servo valve and controller are from MOOG(USA),and both devices are able to ensure the evenness of wall thickness and the products’ elegant appearance.

2. The low-voltage electrical apparatus comes from Siemens(Germany), and Schneider(France).

3. The machine adopts toggle articulated clamp system to ensure bigger clamp force and more beautiful goods.

4. The servo drivers and energy accumulator are used to be more economical.

Feature

Die head : Special steel and centre feed extrusion die head;

Extruder unit : adopt automatic temperature control unit of import,the screw united by frequency motor,hard tooth surface gear box to achieve stepless speed regulation;

Clampling device : Across the basement type double linear guide and move mould strengthen rigidity. Template is three bar with center clamping system

Hydraulic system : whole system adopt imported components, proportional control flow, Fast response, more stable, power consumption without loss;

Electric controlling system : it adopts Japan programmable controller, touch screen,the characteristic of it has direct manipulation and large information on board.

Parameters

SPECIFICATIONS & TECHNICAL DATA

Extrusion Unit

Screw Diameter

mm

90

Plasticizing Capacity

Kg/hour

140

Temperature Control Zone

No.

5

Continuous Head

Single Head Max Die Diameter

mm

230

Double Head Central Distance

mm

250

Four Head Central Distance

mm

150

Six Head Central Distance

mm

100

Clamping Unit

Clamping Force

KN

180

Platen Size

mm

600x475

Opening Distance

mm

200~600

Moving Distance

mm

750

Max Mould Size

mm

550x450

Driving System

Extrusion Motor Power

KW

37

Pump Motor Power

KW

15

Machine Total Power

KW

99

Average Power Consumption

KW

58

Components list


COMPONENTS NAME


BRAND


ORIGIN


PLC


MITSUBISHI


Japan


Operation screen


SIMENS


Germany


Parison control system


MOOG


Japan


Inverter


MITSUBISHI


Japan


Pneumatic parts


FESTO


Germany


Hydraulic pump and valve


YUKEN


Japan


Transducer


GEFRAN


Italy


Contactor


SCHNEIDER


France


Relay


SCHNEIDER


France
