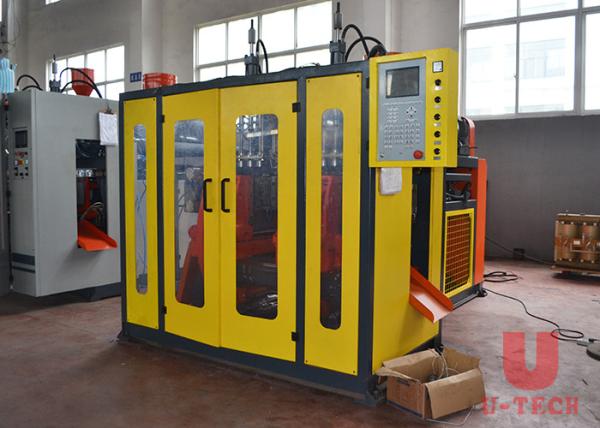

Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m
Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m
Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m
Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m
Specifications
Brand Name :
U TECH
Model Number :
BST-80
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
discussible
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case
Material :
Stainless Steel
PLC :
SIMENS(Germany)
Clamping Force :
1600Kn
Screw Diameter :
80mm
Cylinder :
SMC
Suitable bottle :
plastic drum jeyycan bottles
Power (kW) :
8.5
Weight (KG) :
8000
Warranty :
2 Years
Dimension :
4.8*2.3*3.5m
Description

Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m

Introduction

Extrusion Blow Molding is one of several blow molding methods to produce plastic bottles, jars, and jugs. It is a common blow molding technology used to process many different plastics, including HDPE, PVC, PC, PP, and PETG - and very common with bottles requiring multi-layer technologies (bottles with special oxygen / moisture barrier requirements to improve product compatibility & stability).

Extrusion Blow Molding is the simplest type of blow molding. A hot tube of plastic material, called a parison, is dropped from an extruder and captured in a water cooled mold. Once the molds are closed, air is injected through the top or the neck of the container; just as if one were blowing up a balloon. When the hot plastic material is blown up and touches the walls of the mold the material "freezes" and the container now maintains its rigid shape.


It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

Parameters


Category
Item
Unit
BST70
BST80
BST90
Extruder Unit
Screw diameter
mm
70
80
90

Screw L/D ratio
L/D
25:1
25:1
25:1

Plasticising capacity
kg/hr
80
100
120
number of heating zone
kw
10
12.5
12.5

extruder driving power
zone
4
5
extruder heating power
Kw
15
22
30
Die head number of heating zone
zone
3
3
4
power of die heating
kw
4
6
8

max die-pin diameter
mm
250
350
400
accumulator capacity
kg
3
4
6
specifications Max container capacity
L
20
30
50
machine dimension
M
4*2.6*2.7
5*3.1*3.2
5*3.1*3.9
total weight
tom
4.5
7
9

Clamping Unit
 clamping force
kn
160
300
400
platen opening stroke
mm
250-800
350-1050
350-1250
max mould size
mm
520*600
700*1000
900*1200
mould thickness
mm
260-400
360-500
360-600

Power
 Oil pump motor
kw
7.5
11
11
total power
kw
40
63
70
fan power for screw
kw
0.72
0.72
0.72
air pressure
mpa
0.7
0.7
0.7
air consumption m 3 /min
0.9
0.9
0.9
average energy consumption
kw
20
28
35

Jeyycan Bottles Small Plastic Blow Molding Machine High Speed 4.8*2.3*3.5m

Components list


COMPONENTS NAME
BRAND
ORIGIN

PLC
MITSUBISHI
Japan

Operation screen
SIMENS
Germany

Parison control system
MOOG
Japan

Inverter
MITSUBISHI
Japan

Pneumatic parts
FESTO
Germany

Hydraulic pump and valve
YUKEN
Japan

Transducer
GEFRAN
Italy

Contactor
SCHNEIDER
France

Relay
SCHNEIDER
France
