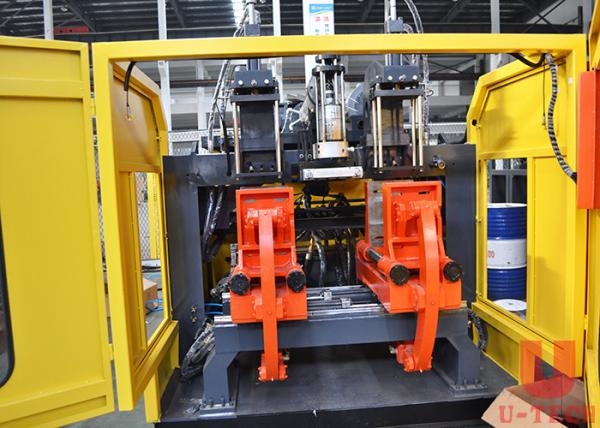

Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine
Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine
Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine
Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine
Specifications
Brand Name :
U TECH
Model Number :
BST-80
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
USD 20000 - 56000 Set/Sets
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
45 work days
Packaging Details :
Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine
Material :
Stainless Steel
PLC :
SIMENS(Germany)
Clamping Force :
1600Kn
Screw Diameter :
80mm
Cylinder :
SMC
Suitable bottle :
plastic drum jeyycan bottles
Power (kW) :
8.5
Weight (KG) :
8000
Warranty :
2 Years
Dimension :
4.8*2.3*3.5m
Description

Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine

Introduction

BST Series Extrusion blow molding machine is suitable for producing various plastic products, such as bottles, containers, or different central hollow products with material of HDPE, LDPE, PP,PVC and so on. We can design and manufacturer according to customer special demand.

This Extrusion Blow Moulding Machine is designed and manufactured at our multifaceted manufacturing facility which is outfitted with technically advanced machines and amenities. With the help of modish technology, we have been able to produce high-speed,high-efficient multi-layer,multi-cavities extrusion blow molding machine and meet large demands for plastic container products ,as well as saving a lot of raw material costs for container packaging enterprises.

Advantages:

1. High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
2. Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
3. Unique extrusion die heads that produce canisters extremely elegant and luxury.
4.Fast cycle time provide more productions.
5. High-efficient Energy saving solution.Adopt energy-saving system which can increase the 20% efficiency. Power consumption is about 10% lower.
6. This machine adopt the directional proportional valves which can gurantee the stable working process.
7. Multiple-way PID controlled temperature heating is precise and stable.

Parameters


Category
Item
Unit
BST70
BST80
BST90
Extruder Unit
Screw diameter
mm
70
80
90

Screw L/D ratio
L/D
25:1
25:1
25:1

Plasticising capacity
kg/hr
80
100
120
number of heating zone
kw
10
12.5
12.5

extruder driving power
zone
4
5
extruder heating power
Kw
15
22
30
Die head number of heating zone
zone
3
3
4
power of die heating
kw
4
6
8

max die-pin diameter
mm
250
350
400
accumulator capacity
kg
3
4
6
specifications Max container capacity
L
20
30
50
machine dimension
M
4*2.6*2.7
5*3.1*3.2
5*3.1*3.9
total weight
tom
4.5
7
9

Clamping Unit
 clamping force
kn
160
300
400
platen opening stroke
mm
250-800
350-1050
350-1250
max mould size
mm
520*600
700*1000
900*1200
mould thickness
mm
260-400
360-500
360-600

Power
 Oil pump motor
kw
7.5
11
11
total power
kw
40
63
70
fan power for screw
kw
0.72
0.72
0.72
air pressure
mpa
0.7
0.7
0.7
air consumption m 3 /min
0.9
0.9
0.9
average energy consumption
kw
20
28
35

Pp Drum Pe Hdpe 5L Shampoo Bottle Making Blow Molding Extrusion Moulding Machine

Components list


COMPONENTS NAME
BRAND
ORIGIN

PLC
MITSUBISHI
Japan

Operation screen
SIMENS
Germany

Parison control system
MOOG
Japan

Inverter
MITSUBISHI
Japan

Pneumatic parts
FESTO
Germany

Hydraulic pump and valve
YUKEN
Japan

Transducer
GEFRAN
Italy

Contactor
SCHNEIDER
France

Relay
SCHNEIDER
France
