Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Plastic Tube HDPE Blow Moulding Machine High Speed 1000bph Plastic Blowing
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Tube Accessory
Clamping Type :
Toggle type -U Type
Layer :
1 Layer
Station :
Double or Single
Description

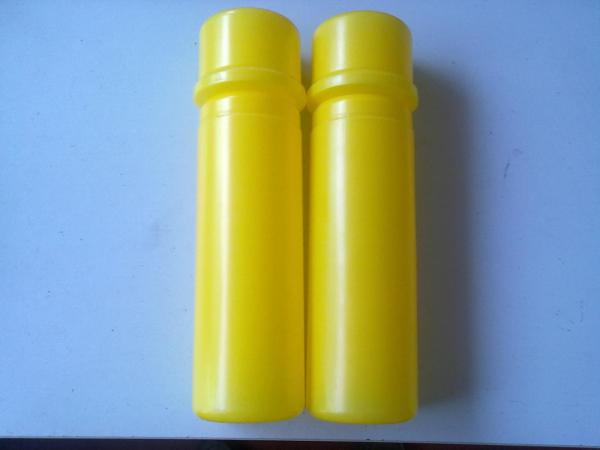

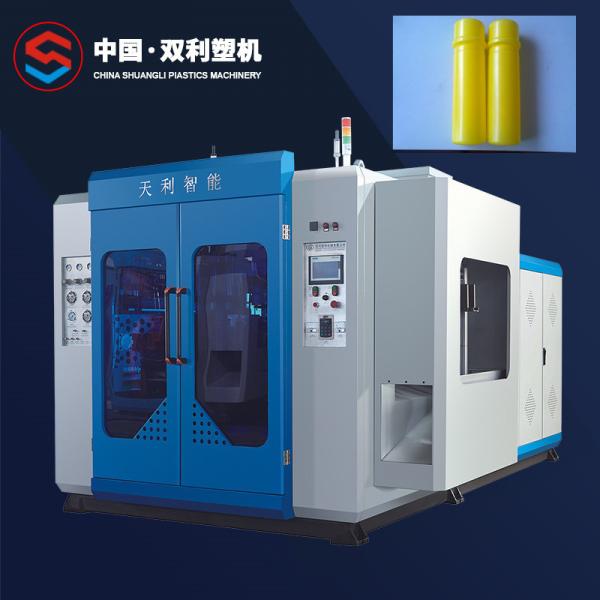

HDPE High Speed 1 Layer Automatic Extrusion Blow Molding Machine for Plastic Tube Accessory

SLBU series:

1. When the fully automatic blow molding machine is being repaired, press the touch screen fault repair button to ensure safe maintenance. If you need to manually observe the action of each individual cavity, please pay attention to the position of the robot. At the same time, be sure to clear the role of separate buttons to ensure that the malfunction caused unnecessary trouble.

2. When the high-low pressure air source switch is turned on, it must be operated slowly to prevent the gas source from flowing too fast. The dirt is blown into the solenoid valve. At the same time, the exhaust valve is opened for 30 seconds to ensure the air is clean.

3. After the normal operation of fully automatic blow molding machine, any part of the body do not reach into the machine to avoid injury to the robot. If the machine has abnormal noise, it can be observed after deceleration.

4: this machine is suitable for the production of 200ML- 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly.

5: hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable. And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling.

SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
