Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Square Bottle
Clamping Type :
Toggle Type-U Type
Machine Type :
Automatic Extrusion
Speed :
High speed
Description

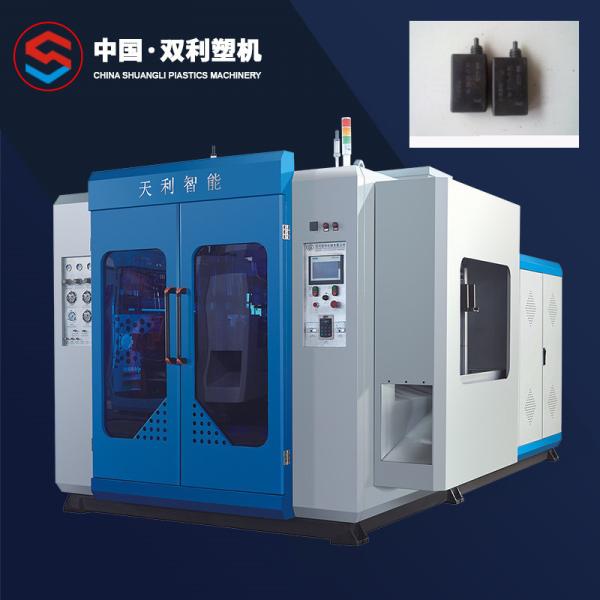

HDPE High Speed 1 Layer Automatic Extrusion Blow Molding Machine for Plastic Square Bottle​

SLBU series:

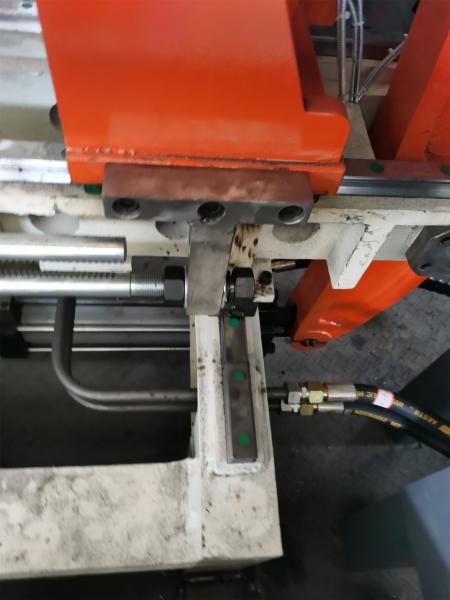

1 die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.

2 die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment.

3. Check the emergency stop switch, safety door switch, protective device detection switch is normal.

4. Fully automatic blowing machine must be convinced when starting the mechanical part is good, no one inside the machine, no foreign body. Especially shake the position to avoid hurting people. At the same time, close the security door.


5. Check whether the triplet is abnormally leaky, whether it is blocked, and whether the water in the cup is too full..


SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

Square HDPE Bottle Moulding Machine U Type 5l Automatic Extrusion
