1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
1 Head 200ml Plastic Extrusion Blow Moulding Machine , Kitchenware Plastic Blowing Machine
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Kitchenware.
Clamping Type :
U Type
Layer :
1 Layer
Station :
Double
Description

U series High Speed 1 Layer Double Station 1 Die head Blow Molding Machine for Plastic Kitchenware.

SLBU series:

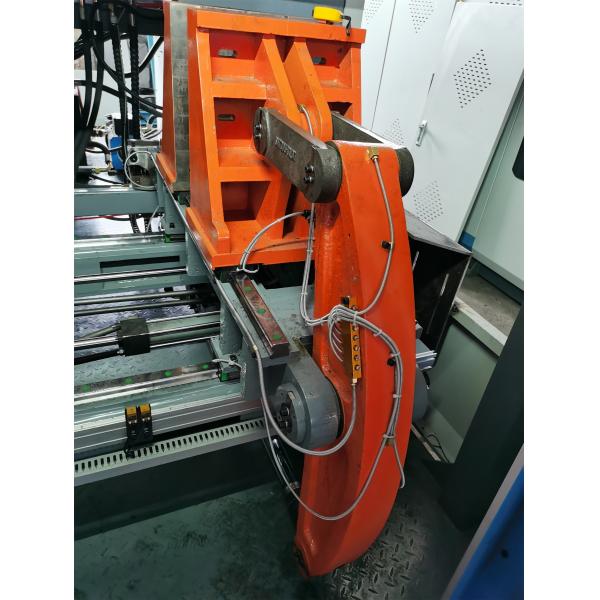

1: this machine is suitable for the production of 200ML -5L plastic hollow products, the use of curved elbow lock system, low energy consumption,

the center of the lock, the lock force, speed faster, run more smoothly.Servo Hydraulic System includes Servo Head Lifting, Servo Die Head,

Servo Parison Control System, Servo Blow Pin, Servo Clamping Unit and Servo Carriage

2: Slow frame down pressure: When fully automatic, when the current mode shifting action hits the slow down mode shift proximity switch,

The hydraulic system pressure is converted from the lower frame down pressure to the lower frame down pressure until the pressure is stopped

when the end of the lower die is approached to the switch. The lower shift mode impact is controlled by the lower frame lower pressure and the

buffered one-way throttle valve at the rear end of the cylinder. When there is a shock sound in the lower shift mode, the lower frame lower

pressure is reset and the pressure is lowered. Second, the adjusting screw on the one-way throttle valve is screwed clockwise inward, and is

adjusted until the lower shifting mold has no impact sound. Pay attention to safety when adjusting the lower die throttle valve. The down frame

pressure is also the pressure of the mold shift under manual operation. If the manual lower mold does not move, just set the lower frame pressure

to high, but in the fully automatic operation, the lower frame pressure should be set low. The general pressure analog quantity is set between 100

and 350.

SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
