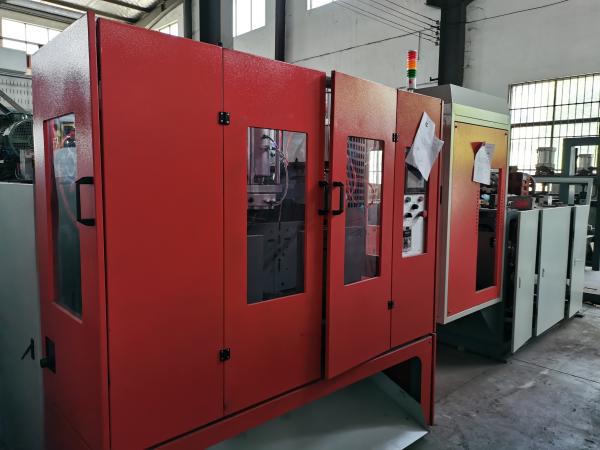

X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
Specifications
Brand Name :
SHUANGLI
Model Number :
SLX-55
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
2L
Station :
Double
Clamping Type :
X series
Layer :
1 Layer
Die Head :
1 Head
Description

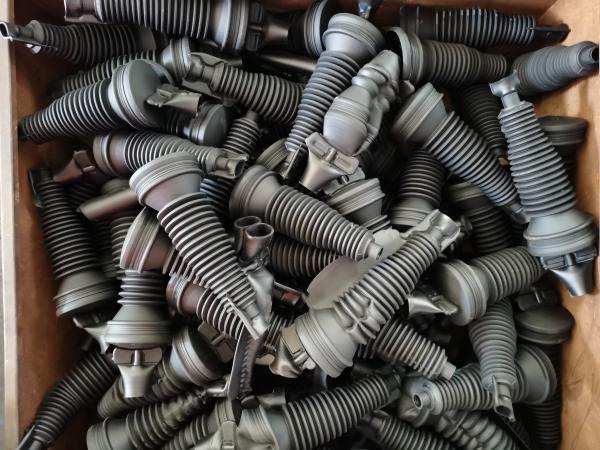

X series High Speed 1 Layer Double Station 1 Die head Blow Molding Machine for Plastic Appliance Accessories.​

SLX series:

1.shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 5L and PP, PE, EVA, PS, ABS, TPR, TPV and other raw materials such as blow molding.

2: SLX shuttle blow molding machine is suitable for producing plastic products of PE/PP/EVA/ABS/K material/ TPU, nylon and other materials below 500ml. All parts of the machine is made by advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of famous brand, it has stable equipment performance and simple handling.
✓Single/Double Station
✓Single/Double/Triple/Quadruple Head
✓Production Volume:2ml~1L
✓Multi layers: Co-Extrusion 1 Layers
✓Multi cavities: 1~4 cavities
✓Designed for the PE/PP/PETG/PVC/Co-Extrusion material

SPECIFICATION SLX-55
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 2
NUMBER OF DIE HEAD SET 1,2,3,4,6
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 3200x1600x2200
TOTAL WEIGHT TON 3T

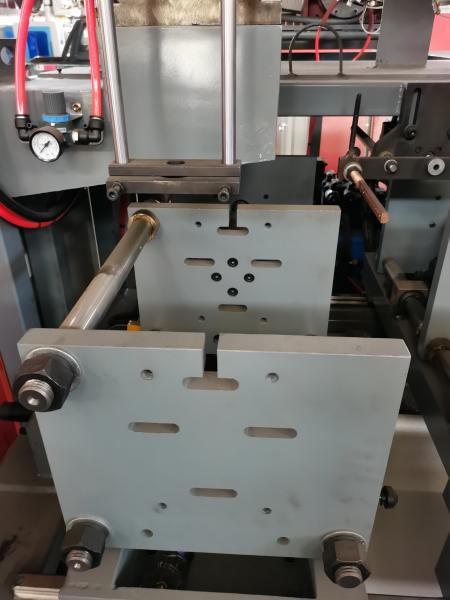

CLAMPING UNIT
CLAMPING FORCE KN 40
PLATEN OPENING STROKE MM 120-420
PLATEN SIZE(WxH) MM 360X300
MAX MOULD SIZE(WxH) MM 240x400
MOLD THICKNESS MM 105-200
EXTRUDER UNIT
SCREW DIAMETER MM 55
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 45
BARREL HEATING POWER KW 12
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 7.5(11)
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 1320
CENTER DISTANCE OF THREE DIE MM 80
CENTER DISTANCE OF FOUR DIE MM 60
CENTER DISTANCE OF SIX DIE MM 60
MAX DIE-PIN DIAMETER MM 150
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 22
FAN POWER OF SCREW KW 0.42
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 8

X Series Double Station Blow Molding Machine 1 Layer Plastic 2l

X Series Double Station Blow Molding Machine 1 Layer Plastic 2l
