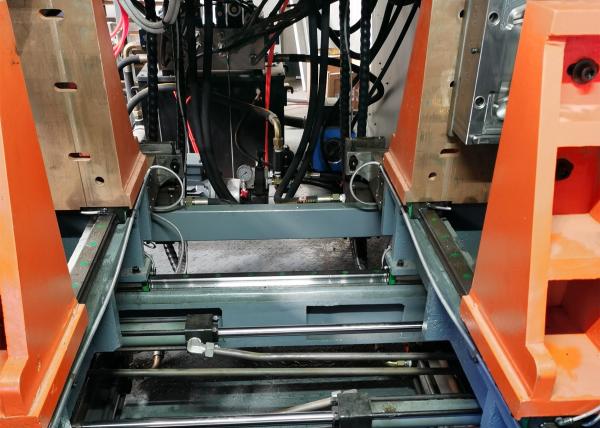

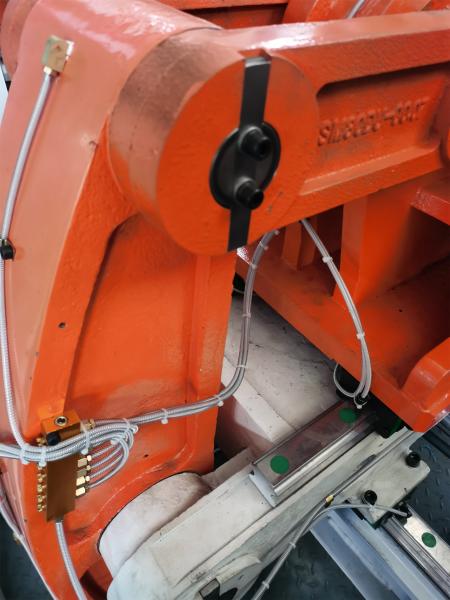

Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Toggle Double Station Blow Molding Machine 6 Head 5l PP Bottle Blowing Machine
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Medical Bottle
Clamping Type :
Toggle type -U type
Station :
Double or Single
Die Head :
6 heads
Description

High Speed 1 Layer Double Station 6 Die head Blow Molding Machine for Plastic Medical Bottle

SLBU series:

1: this machine is suitable for the production of 200M-5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.

2: Plastic Medical Bottle Machine Setting.

Upper bias: When the current value is higher than the set value and exceeds the upper deviation, the heating stops working. If there is a cooling fan, the cooling fan starts to cool.

Lower bias: When the current value is lower than the set value and lower than the lower deviation, the heating starts to work. If the cooling fan is working, it stops working.

Lower limit: When the current value is lower than the set value and reaches the lower limit value, an alarm will be issued. At this time, the operator should check the heating condition of the alarm, such as whether the heater, thermocouple, etc. work normally.

MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
