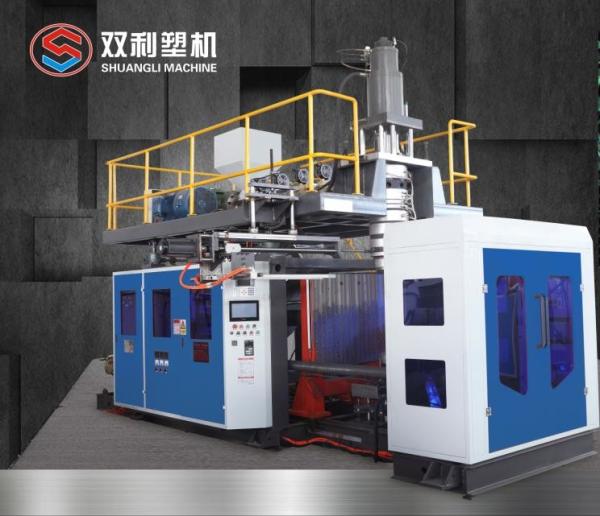

60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBC-90
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
60L
Station :
Single
Clamping Type :
C type-Tie bar
Product :

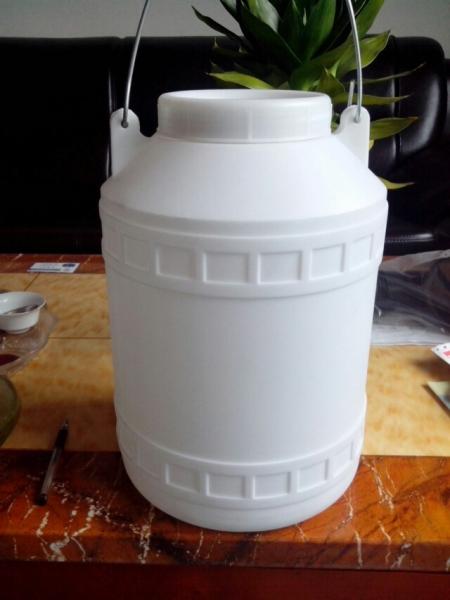

Big Size Plastic Barrels
Die Head :
Accmulator Type
Description

Single Station 1 Die Head Accmulator Type Plastic Blow Molding Machine For Big Size Plastic Barrels

SLBC series: (German model)

1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode. All parts of the machine is made by advanced numerical control equipment with high precision.

2:System tool function screen: Mainly used to prompt system contrast, device number and system time correction function.

Power-on display: When the control system is powered up, the display shows the screen.

Control main screen: After pressing the power-on display screen, the display shows the screen. This screen is the integrated control screen. Press the corresponding function key to control the corresponding function. At the same time, the heating function and motor running can be started.

Manual operation screen: mainly performs various manual operation functions.

Temperature control setting screen: Press the temperature key to enter the temperature control setting screen 1 screen, which is mainly used to set the temperature value, upper deviation, lower deviation and lower limit parameters of each heating section. Press the "Next Page" button of "Temperature Control Setting Screen 1" to enter the temperature control setting screen 2, and press the "Previous Page" button of "Temperature Control Setting Screen 2" to return to the "Temperature Control Setting Screen 1" screen. .

SPECIFICATION SLBC-90
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 60
OUPUT(DRY CYCLE) PC/HR 450
MACHINE DIMENSION (LxWxH ) MM 6300x3400x4200
TOTAL WEIGHT TON 14T
CLAMPING UNIT 　
CLAMPING FORCE KN 260
PLATEN OPENING STROKE MM 400-1200
PLATEN SIZE(WxH) MM 900x1000
MAX MOULD SIZE(WxH) MM 750x1200
MOLD THICKNESS MM 410-700
EXTRUDER UNIT 　
SCREW DIAMETER MM 90
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 140
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 5
EXTRUDER MOTOR RATED POWER KW 45
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 4
POWER OF DIE HEATING KW 18
MAX DIE-PIN DIAMETER MM 400
POWER 　
MAX DRIVE POWER KW 57
TOTAL POWER KW 105
FAN POWER OF SCREW KW 4
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 38
ACCUMULATOR CAPACITY L 8

60L Accumulator Blow Moulding Machine , PE Barrel Blow Molding Machine
