6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :

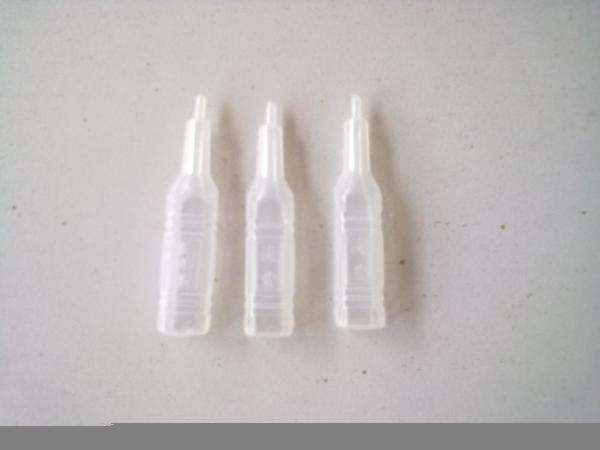

Plastic Medicine Bottle
Machine Type :
Full Automatic
Die Head :
6 Heads
Station :
Double or Single
Description

U series Double Station High Speed 1 Layer 6 Die Heads Blow Molding Machine for Plastic Medicine Bottle​

SLBU series:


1. It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.


2. Double or Single station single die head design, very easy to operate and maintenance.

3. Most components of the blow moulding machine are from famous world brand.


4. Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

5. Multiple screw available for double layer .

6. Auto deflashing device available, can remove the extra parts of bottles.


7. Auto lubricant system controlled by PLC.

Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.

Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .

SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle
