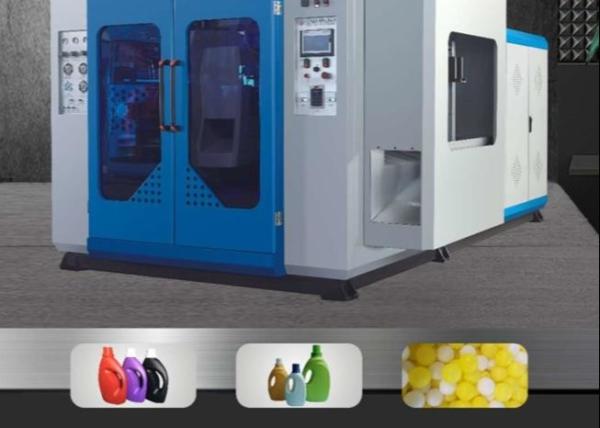

Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Laundry Detergent Bottle
Speed :
High speed
Machine Type :
U series-Toggle Type
Station :
Double Station
Description

U series Double Station High Speed 1 Layer 3 Die Head Blow Molding Machine for Plastic Laundry Detergent Bottle

SLBU series:

1. The whole machine adopts automatic cutting flash mold, no need to cut side scrap, integral molding,saving in labor, and the production efficiency is high.

2. The equipment can adopt the edge material automatic recovery system, automatic trimming, automatic crushing and reuse. Realize the full automation of the product.


3. The machine can be designed as a single station,but also can design as double station to improve production efficiency.


4. The machine can be designed as a single die head or a double die head. The mold can also be designed as a single cavity or a multi-cavity mold accordingly.


5. Machine hydraulic system: The machine adopts a servo hydraulic system, which can accurately control the pressure and flow according to the actual movement of the machine, and has low energy consumption.

6: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly for 2 die head for plastic detergent bottle with view stripe line.

SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

Detergent Bottle Extrusion Blow Molding Machine 3 Head , 5l Bottle Water Blowing Machine
